Question: 2 . 9 . A 1 0 0 - m m by 1 5 0 - m m rectangular plate QABC is deformed into the

2.9. A 100-mm by 150-mm rectangular plate QABC is deformed into the shape shown by the
dashed lines in Fig. P2.9. All dimensions shown in the figure are in millimeters. Determine at point
Q(a) the strain components x,y,xy

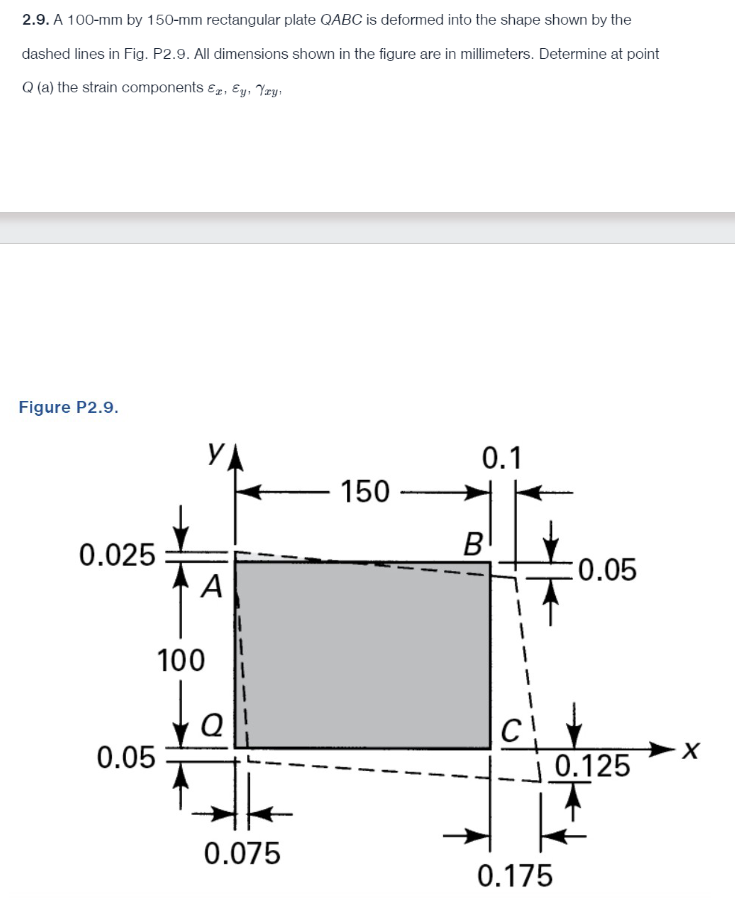

Figure P2.9.
2 . 9 . A 1 0 0 - m m by 1 5 0 - m m rectangular

Step by Step Solution

There are 3 Steps involved in it
