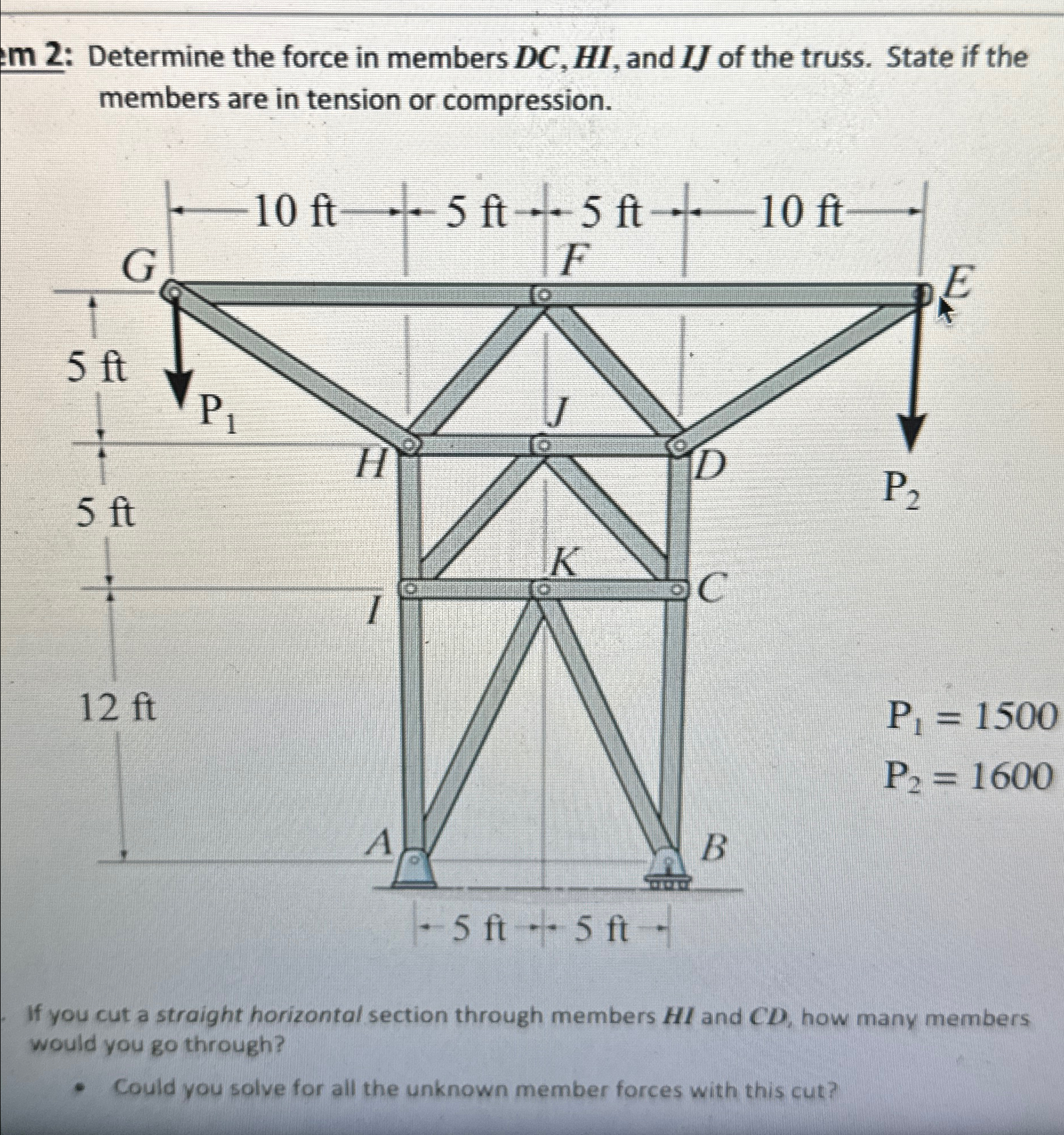

Question: 2 : Determine the force in members D C , H , and I of the truss. State if the members are in tension or

2: Determine the force in members DC,H, and I of the truss. State if the members are in tension or compression.
If you cut a straight horizontal section through members HI and CD, how many members would you go through?
Could you solve for all the unknown member forces with this cut?
2 : Determine the force in members D C , H , and

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
