Question: 2. Determine the normal force, shear force, and moment at point C where A is pin support and B is roller support (refer to Figure

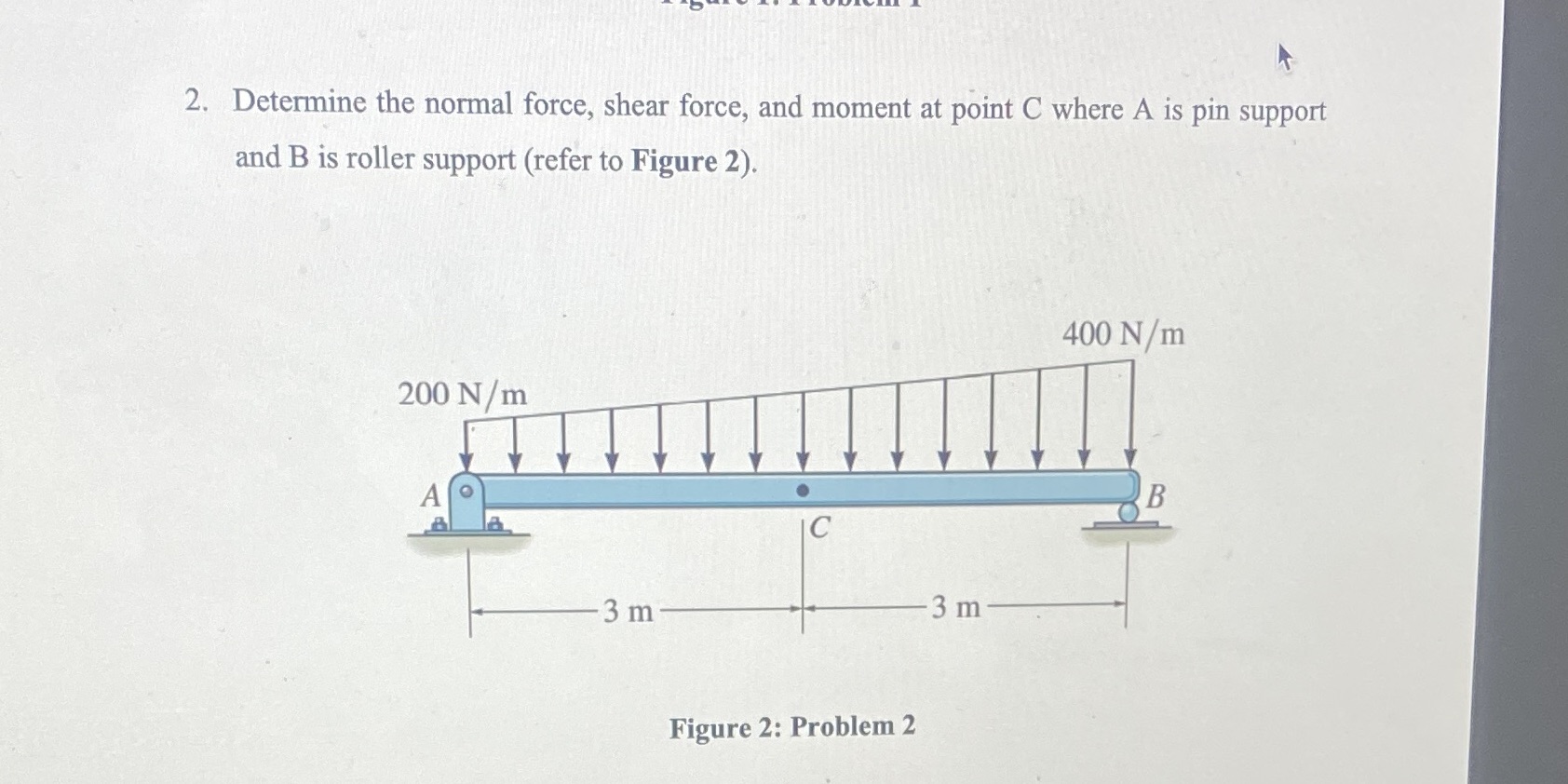

2. Determine the normal force, shear force, and moment at point C where A is pin support and B is roller support (refer to Figure 2). 400 N/m 200 N/m A B C 3 m 3 m Figure 2: Problem 2

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related Physics Questions!

Determine the normal force, shear force, and moment at point C of the beam. 200 N/m -3m IC -3 m- 400 N/m B

Determine the internal normal force, shear force, and moment at point C of the beam. 400 N/m 200 N/m C 3m 3 m

Determine the normal force shear force and moment at a section passing through point D of the two memberframe. 400 N/m 200 N/m 2.5 m 6m-

Determine the internal normal force, shear force, and moment at points C and D in the simply supported beam. Point D is located just to the left of the 2 0 - k N concentrated load ( refer to Figure 2...

Q 1 . The beam, shown in Figure 1 , is supported by a pin at point A , and a roller at point B . a ) Draw the freo - body diagram of the beam. ( Marks: 1 ) b ) Determine the support reactions at...

Learning Goal: Part A Begin by finding the support reactions for the beam using the free - body diagram shown in ( Figure 2 ) . What is the tension in the cable? Express your answer to three...

A beam with length L = 2 . 2 m is supported by a pin joint at A and a cable attached at C Express your answer to three significant figures with appropriate units. View Available Hint ( s ) Incorrect;...

vvilat is ule verucal teacuuri iutce at A ? Express your answer to three significant figures with appropriate units. Learning Goal: A beam with length L = 2 . 2 m is supported by a pin joint at A and...

Learning Goal: A beam with length \ ( L = 3 \ mathrm { ~m } \ ) is supported by a pin joint at \ ( A \ ) and a cable attached at \ ( C \ ) as shown in ( Figure 1 ) . It is subjected to the...

Learning Goal: A beam with length LL = 3 mm is supported by a pin joint at AA and a cable attached at CC as shown in ( Figure 1 ) . It is subjected to the distributed load with w 1 w 1 = 1 . 6 kN /...
