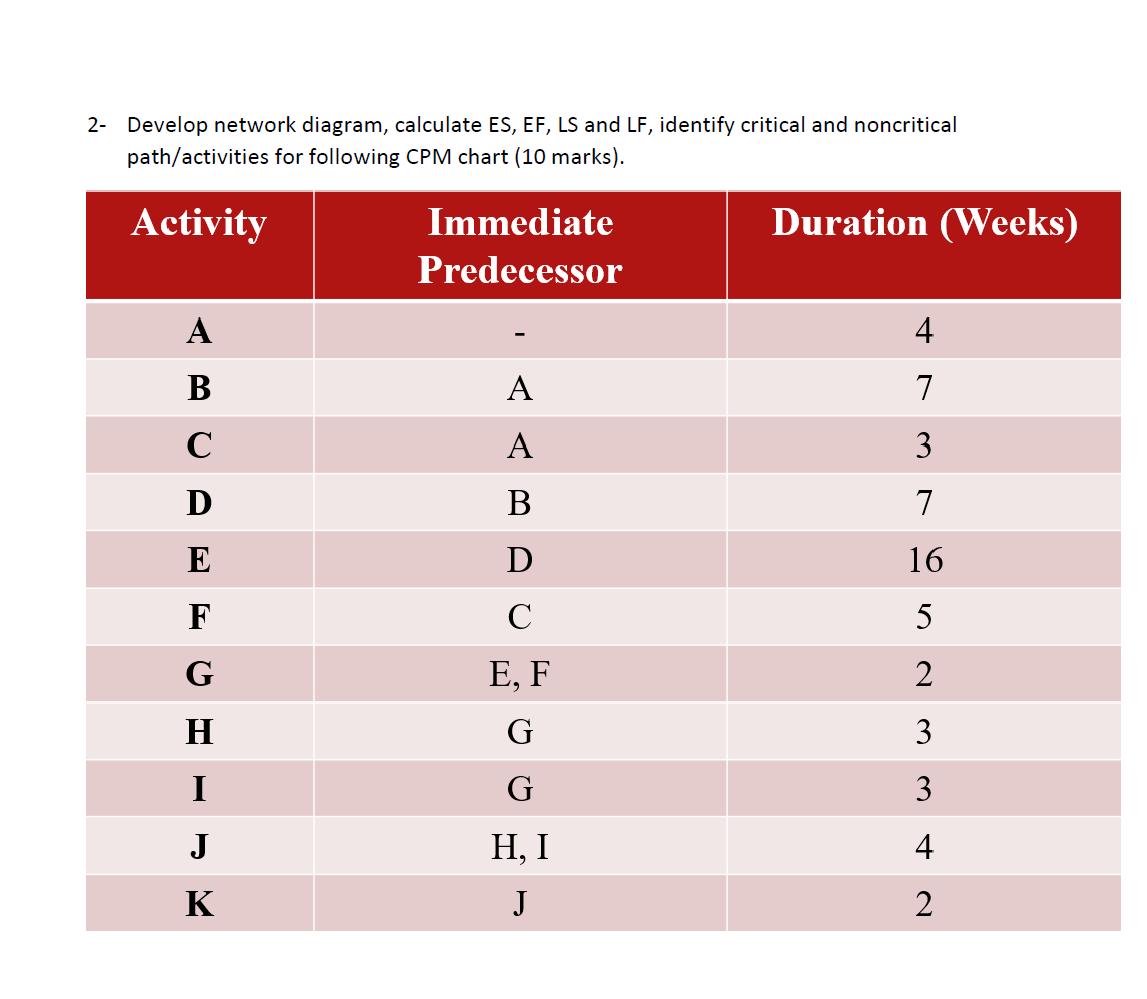

Question: 2- Develop network diagram, calculate ES, EF, LS and LF, identify critical and noncritical path/activities for following CPM chart (10 marks). Activity Duration (Weeks) Immediate

2- Develop network diagram, calculate ES, EF, LS

2- Develop network diagram, calculate ES, EF, LS and LF, identify critical and noncritical path/activities for following CPM chart (10 marks). Activity Duration (Weeks) Immediate Predecessor A 4 B A 7 A 3 D B 7 E D 16 F 5 G E, F 2 H G 3 I G 3 J H, I 4 K J 2

Step by Step Solution

There are 3 Steps involved in it
