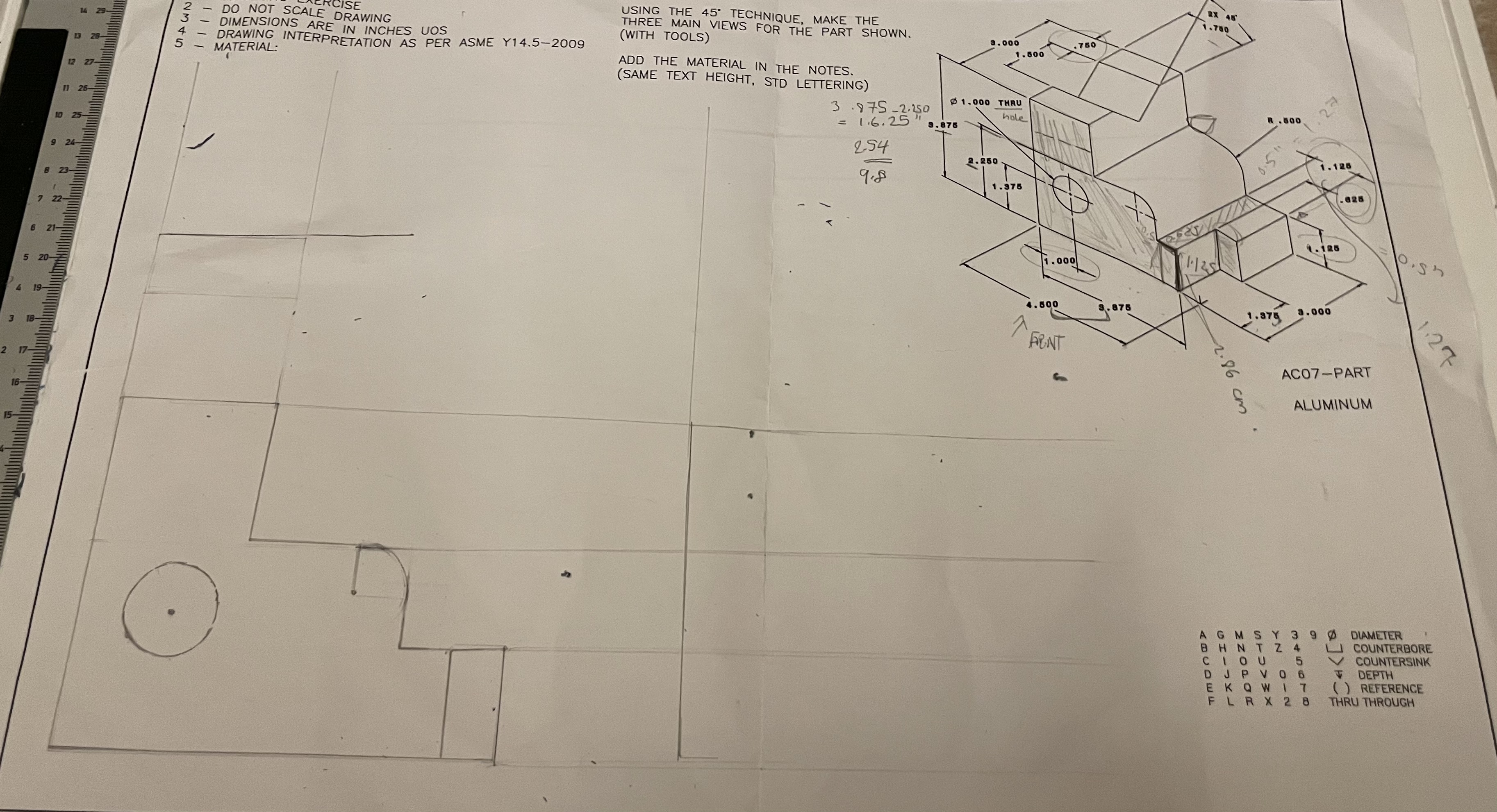

$2-$ DO NOT SCALE DRAWING

$4-$ DIMENSIONS ARE IN INCHES UOS

$5-$ DRAWING INTERPRETATION AS PER ASME Y$14\mathrm{.}5-2009$

MATERIAL:

$1$

USING THE $45^($@$)$ TECHNIQUE, MAKE THE

THREE MAIN VIEWS FOR THE PART SHOWN.

$($WITH TOOLS$)$

ADD THE MATERIAL IN THE NOTES.

$($SAME TEXT HEIGHT, STD LETTERING$)$

Draw the orthographic view of this isometric shape, given dimensions are in inches, required dimensioning are in cm$.$ Hidden and center lines are included
