Question: 2. Examine the routing table below (Figure 1) and answer the following questions. Gateway of last resort is 10.10.10.6 to networx 0.0.0.0 172.16.o.0/16 is directly

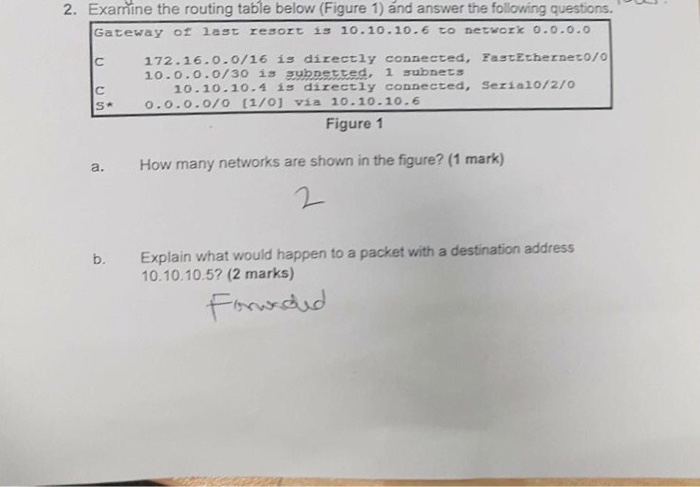

2. Examine the routing table below (Figure 1) and answer the following questions. Gateway of last resort is 10.10.10.6 to networx 0.0.0.0 172.16.o.0/16 is directly connected, FastEtherneto/o 10.o.0.0/30 is aubnsested. 1 subnets 10.10.10.4 directly connected, Serial 0/2/0 s* o...0/0 [1/0] via 10.10.10.6 Figure 1 a. How many networks are shown in the figure? (1 mark) b. Explain what would happen to a packet with a destination address 10.10.10.5? (2 marks)

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
