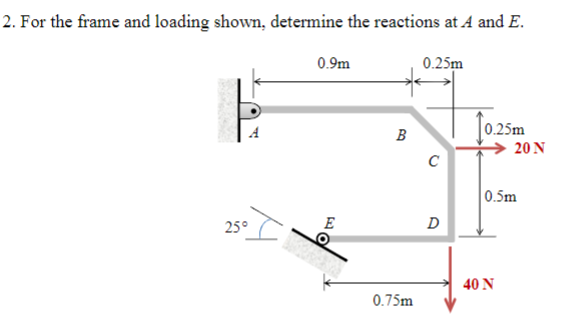

Question: 2. For the frame and loading shown, determine the reactions at A and E. 0.9m 0.25m 0.25m B 20 N C 0.5m 25 C E

2. For the frame and loading shown, determine the reactions at

2. For the frame and loading shown, determine the reactions at A and E. 0.9m 0.25m 0.25m B 20 N C 0.5m 25 C E D O 40 N 0.75m
