Question: 2 - For the pipe segment below, determine the moment created by the force ( mathbf { F } ) about point

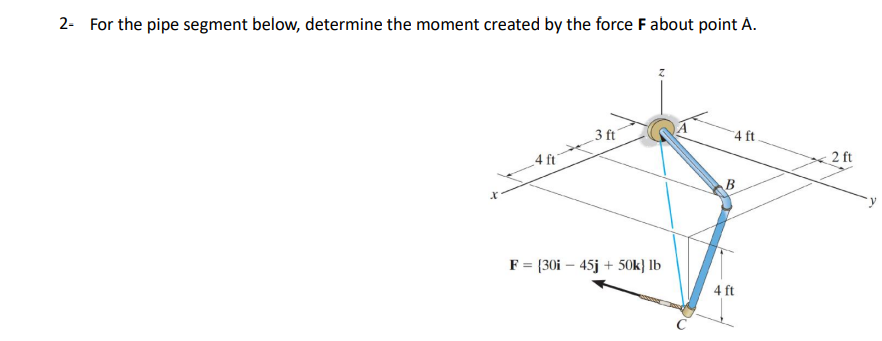

2- For the pipe segment below, determine the moment created by the force \(\mathbf{F}\) about point \( A \).
2 - For the pipe segment below, determine the

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Mechanical Engineering Questions!

Q:

1 - Determine the resultant couple moment acting on the beam. 2 - For the pipe segment below, determine the moment created by the force \ ( \ mathbf { F } \ ) about point \ ( A \ ) .

Q:

2 - For the pipe segment below, determine the moment created by the force F about point A .

Q:

2 - For the pipe segment below, determine the moment created by the force F about point A Im just trying to find the position vector AC some are saying 4 i 2 j - 4 k why isnt it 7 i 6 j - 4 k

Q:

You apply a 5 lb force at the right end of a 3 ft wide door having hinges on the left side. Determine the moment created at the hinges that cause the door to swing open. Problem 2: moments of a...

Q:

A set of forces are applied to a part as shown in the figure. The geometry is given by d 1 = 1 1 . 4 [ c m ] , d 2 = 4 4 . 5 [ c m ] , d 3 = 4 9 . 2 [ c m ] , = 2 0 [ degree ] , and = 2 0 [ degree ]...

Q:

A set of forces are applied to a part as shown in the figure. The geometry is given by d 1 = 2 7 . 1 [ c m ] , d 2 = 4 6 . 5 [ c m ] , d 3 = 4 0 . 9 [ c m ] , = 5 5 [ degree ] , and = 2 5 [ degree ]...

Q:

A force with magnitude F = 1 1 [ N ] is applied to the pipe as shown in the figure. The geometry is given by d 1 = 6 [ m ] , w 1 = 9 [ m ] and = 3 5 [ degree ] . Part 1 . Determine the position...

Q:

5- Determine the moment created by the force F= {30i +100j -50k} acting at D, about each of the joints at A, B and C. Comprehension (State Definition, Free Body Diagram and/or Diagram Sketch) 1.75 m-...

Q:

A force of 80 N acts on the handle of the paper cutter at A. Determine the moment created by this force about the hinge at O, if = 60 At what angle should the force be applied so that the moment it...

Q:

4 1 4 . A force of 8 0 N acts on the handle of the paper cutter at A . If = 6 0 , determine the moment created by this force about the hinge at O . At what angle should the force be applied so that...
