Question: 2. From the data in the table below, calculate the pinch temperature and minimum utility requirements for a minimum temperature difference of 10C. Design a

2. From the data in the table below, calculate the pinch temperature and minimum utility requirements for a minimum temperature difference of 10C.

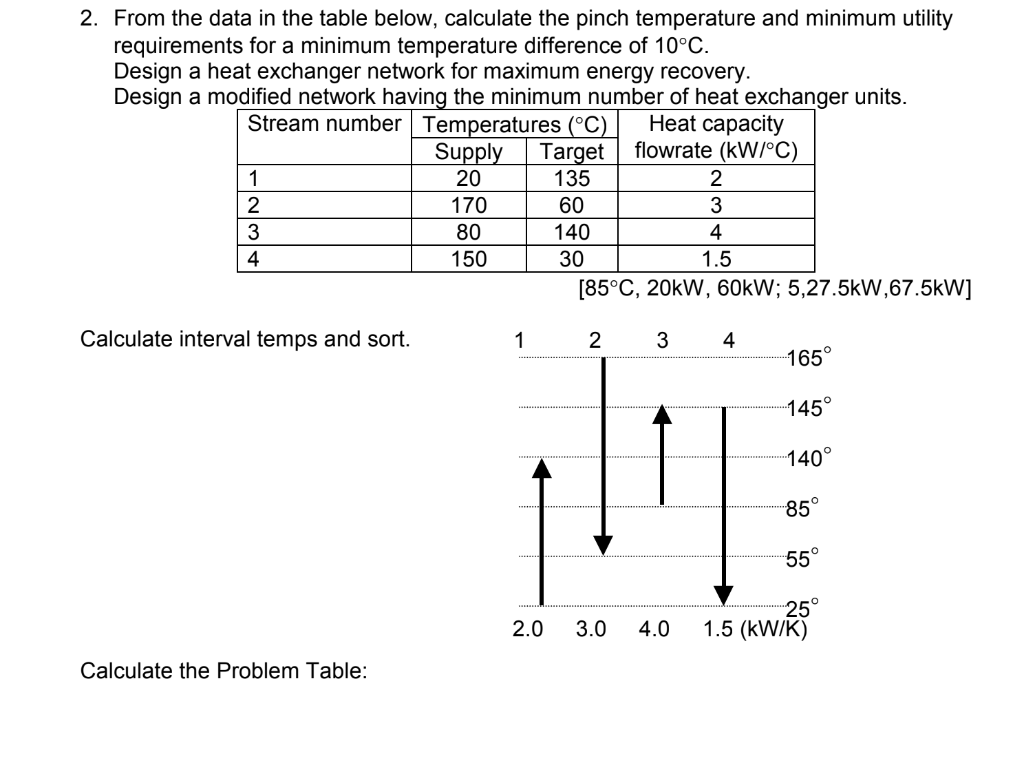

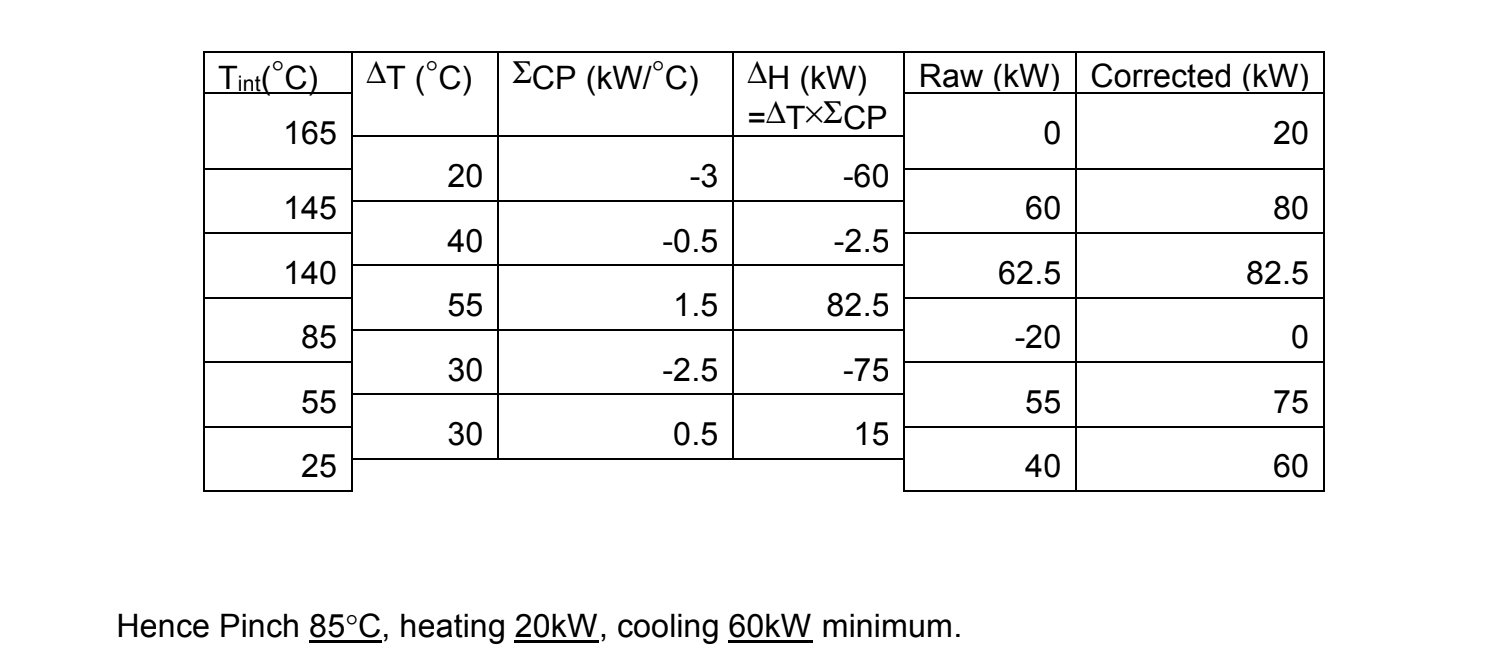

2. From the data in the table below, calculate the pinch temperature and minimum utility requirements for a minimum temperature difference of 10C. Design a heat exchanger network for maximum energy recovery. Design a modified network having the minimum number of heat exchanger units. [85C,20kW,60kW;5,27.5kW,67.5kW] Calculate interval temps and sort. Calculate the Problem Table: Hence Pinch 85C, heating 20kW, cooling 60kW minimum

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
