Analyzing another force-couple system on a bracket. The same bracket and force-couple system as that in Part B (F1=153 lb, F2=51 lb, and M=510 lb/ft) is set up again, only this time, the resultant force is to be applied to the horizontal member CB.

Replace this force and couple system with an equivalent force by specifying the magnitude of the force, the direction in which the force acts, and where the force's line of action intersects member CB as measured from B.

Express your answers, separated by commas, to three significant figures. The angle should be measured counterclockwise from the positive x-axis (parallel to segment CB).

Transcribed Image Text:

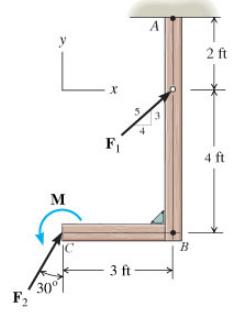

А 2 ft Fi 4 ft м 3 ft 30° F А 2 ft Fi 4 ft м 3 ft 30° F

Answer rating: 100% (QA)

Draw the free body diagram Calculate the resultant force along the horizontal ... View the full answer
