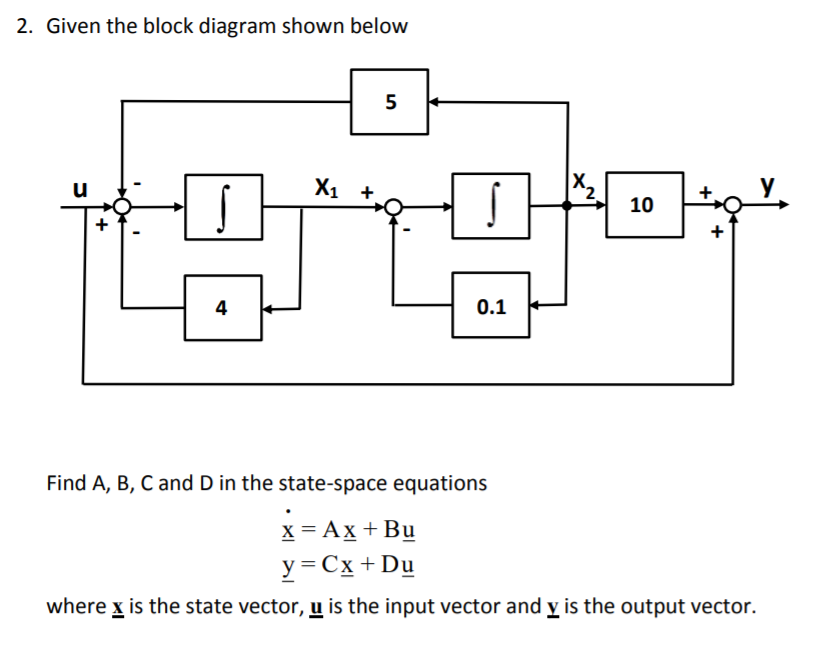

Question: 2. Given the block diagram shown below 5 X, 2 4 0.1 Find A, B, C and D in the state-space equations x=Ax + Bu

2. Given the block diagram shown below 5 X, 2 4

2. Given the block diagram shown below 5 X, 2 4 0.1 Find A, B, C and D in the state-space equations x=Ax + Bu y Cx+Du where x is the state vector, u is the input vector and y is the output vector. 2. Given the block diagram shown below 5 X, 2 4 0.1 Find A, B, C and D in the state-space equations x=Ax + Bu y Cx+Du where x is the state vector, u is the input vector and y is the output vector

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
