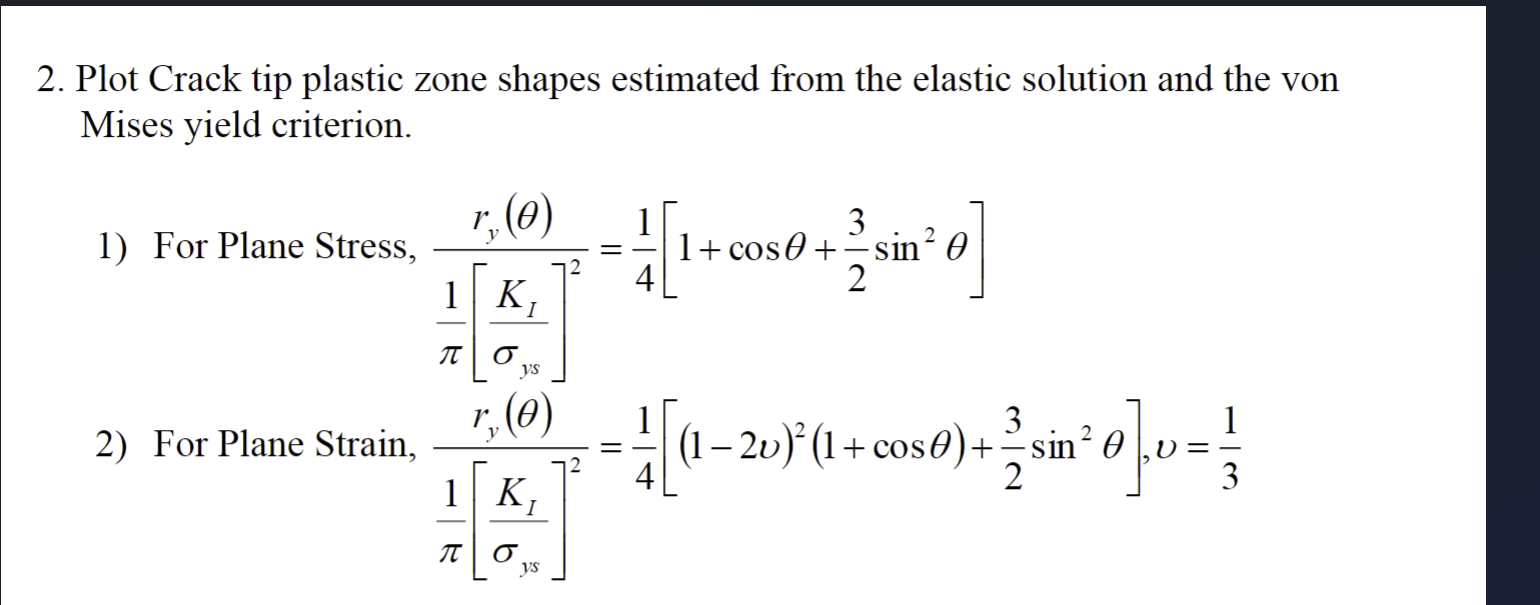

Question: 2. Plot Crack tip plastic zone shapes estimated from the elastic solution and the von Mises yield criterion. 1) For Plane Stress, 2) For

2. Plot Crack tip plastic zone shapes estimated from the elastic solution and the von Mises yield criterion. 1) For Plane Stress, 2) For Plane Strain, 1 K, ys r (0) 1 K, I ys = 1 3 1+ cos 0 +-sin 0 = 2 sin 3 1 = = = (1-2) (1+ cos 0)+ sin 20 (1+cose) 2 3

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related Mechanical Engineering Questions!
