Question: 2 . ( PROBLEM 4 - 1 2 ) Using superposition method, find the deflection of the steel shaft at ( A )

2.(PROBLEM 4-12)

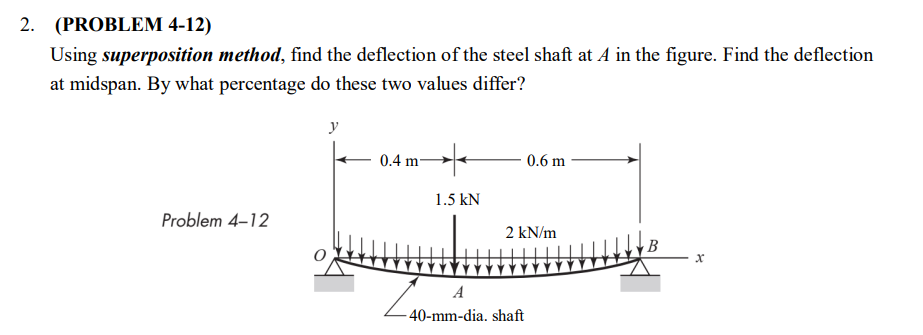

Using superposition method, find the deflection of the steel shaft at \( A \) in the figure. Find the deflection at midspan. By what percentage do these two values differ?
Problem 4-12
2 . ( PROBLEM 4 - 1 2 ) Using superposition

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
