Question: 2 - Replace the force, load and couple system acting on the frame by equivalent resultant force and specify where the resultant's line of action

2 -

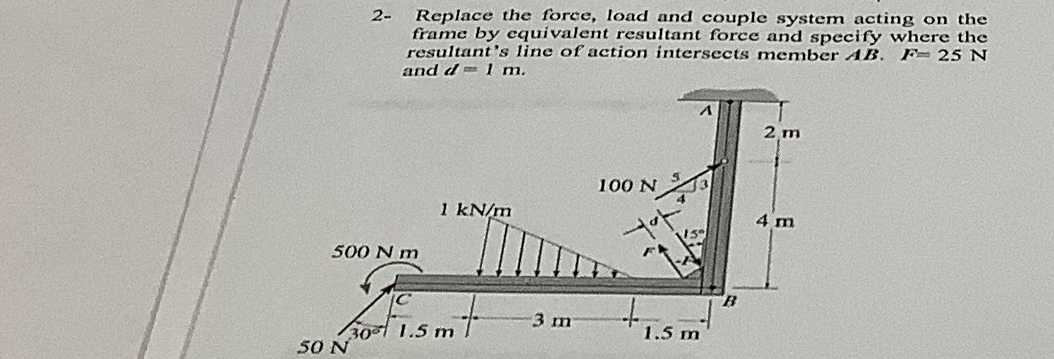

Replace the force, load and couple system acting on the frame by equivalent resultant force and specify where the resultant's line of action intersects member

A B ., F = 25 N

and

d = 1 m .

5 i

2 - Replace the force, load and couple system

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related Mechanical Engineering Questions!

Replace the force and couple moment system acting on the rectangular block by a wrench. Specify the magnitude of the force and couple moment of the wrench and where its line of action intersects the...

Replace the force and couple system acting on the frame by an equivalent resultant force and specify where the resultant?s line of action intersects member BC, measured from B. 2 ft 150 lb 4 ft 500...

4-123. Replace the force and couple system acting on the frame by an equivalent resultant force and specify where the resultant's line of action intersects member BC, measured from B. 500 lb-ft 30...

Replace the force and couple system acting on the frame by an equivalent resultant force and specify where the resultant?s line of action intersects member AB, measured from A. 2 ft 150 Ib 4 ft 500...

Replace the force and couple moment system acting on the beam by an equivalent resultant force and couple moment at point A (Figure 1). Suppose that F = 660 N, F = 280 N, and M = 300 N-m Determine...

Replace the force and couple moment system acting on the beam by an equivalent resultant force and couple moment at point A (Figure 1). Suppose that F = 660 N, F = 280 N, and M = 300 N. m. Determine...

Handwritten solution required ,Don't copy?? CoursHeroTranscribedText: Replace the force and couple moment system acting on the beam by an equivalent resultant force and couple moment at point O ....

Replace the force system acting on the frame by an equivalent resultant force, and specify where the resultant's line of action intersects member AB(Figure 1). Suppose that F1 = 30 lb, F2 = 50 lb,...

Replace the force system acting on the frame by an equivalent resultant force and specify where the resultant's line of action intersects member AB, measured from point A. Given: F1 = 35 lb a = 2 ft...

Replace the force system acting on the frame by an equivalent resultant force, and specify where the resultants line of action intersects member BC, measured from point B. 40 lb B 2 ft 20 lb 5 ft A 5...
