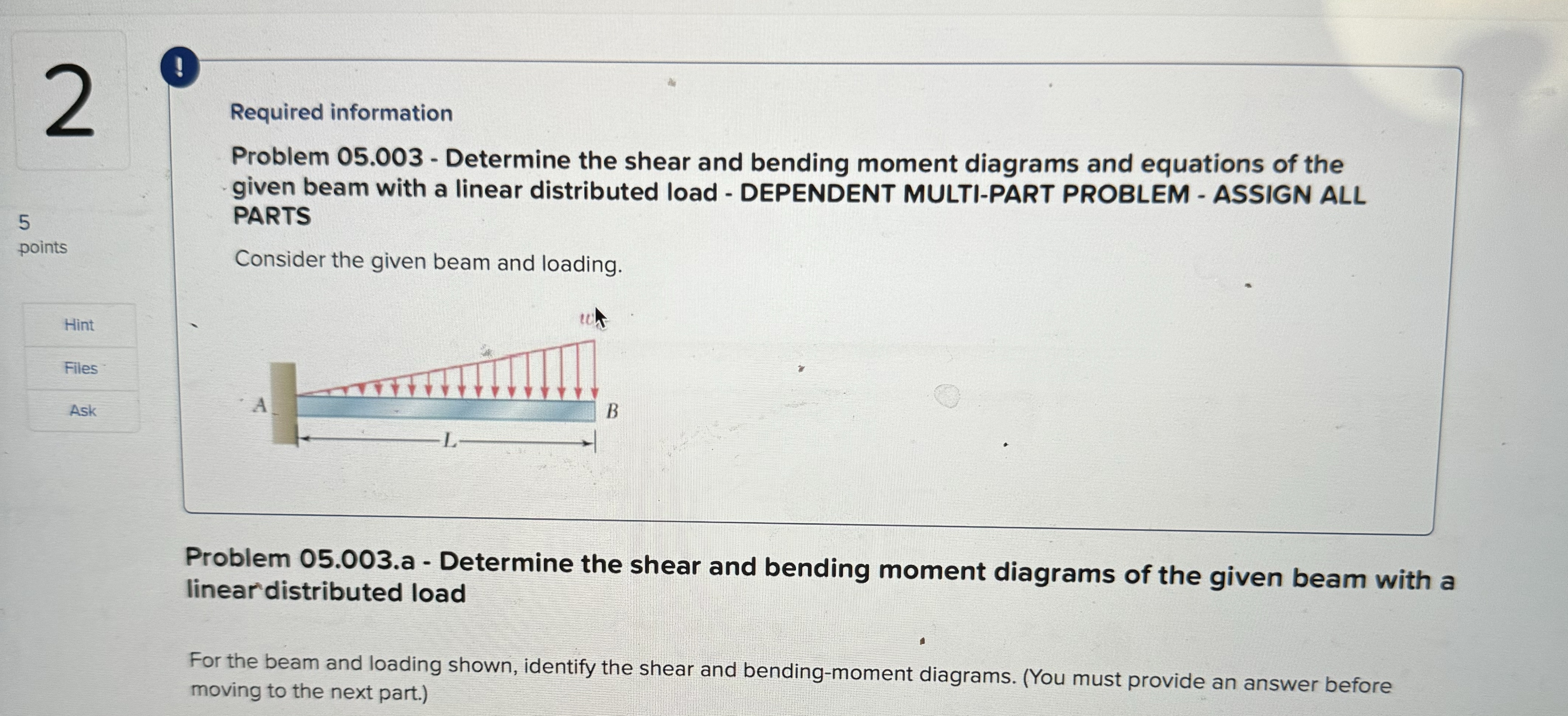

Problem $05\mathrm{.}003-$ Determine the shear and bending moment diagrams and equations of the given beam with a linear distributed load $-$ DEPENDENT MULTI$-$PART PROBLEM $-$ ASSIGN ALL

$5$

PARTS

points

Consider the given beam and loading.

$$

Problem $05\mathrm{.}003.$a $-$ Determine the shear and bending moment diagrams of the given beam with a linear'distributed load

For the beam and loading shown, identify the shear and bending$-$moment diagrams. $($You must provide an answer before moving to the next part.$)$
