Question: 2. The figure represents the concurrent force system acting at a joint of a bridge truss. Determine the values of Force P and Force F

2. The figure represents the concurrent force system acting at a

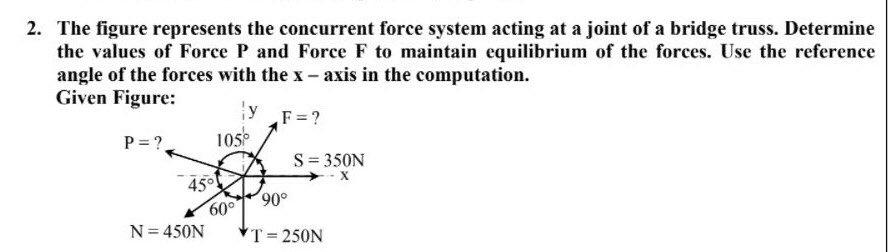

2. The figure represents the concurrent force system acting at a joint of a bridge truss. Determine the values of Force P and Force F to maintain equilibrium of the forces. Use the reference angle of the forces with the x-axis in the computation. Given Figure: y F = ? P = ? 105 S = 350N 450 90 N = 450N T = 250N 60

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
