Question: 2 . ) Two 1 / 2 - in . 6 - in . plates are joined by 5 / 8 - in . diameter

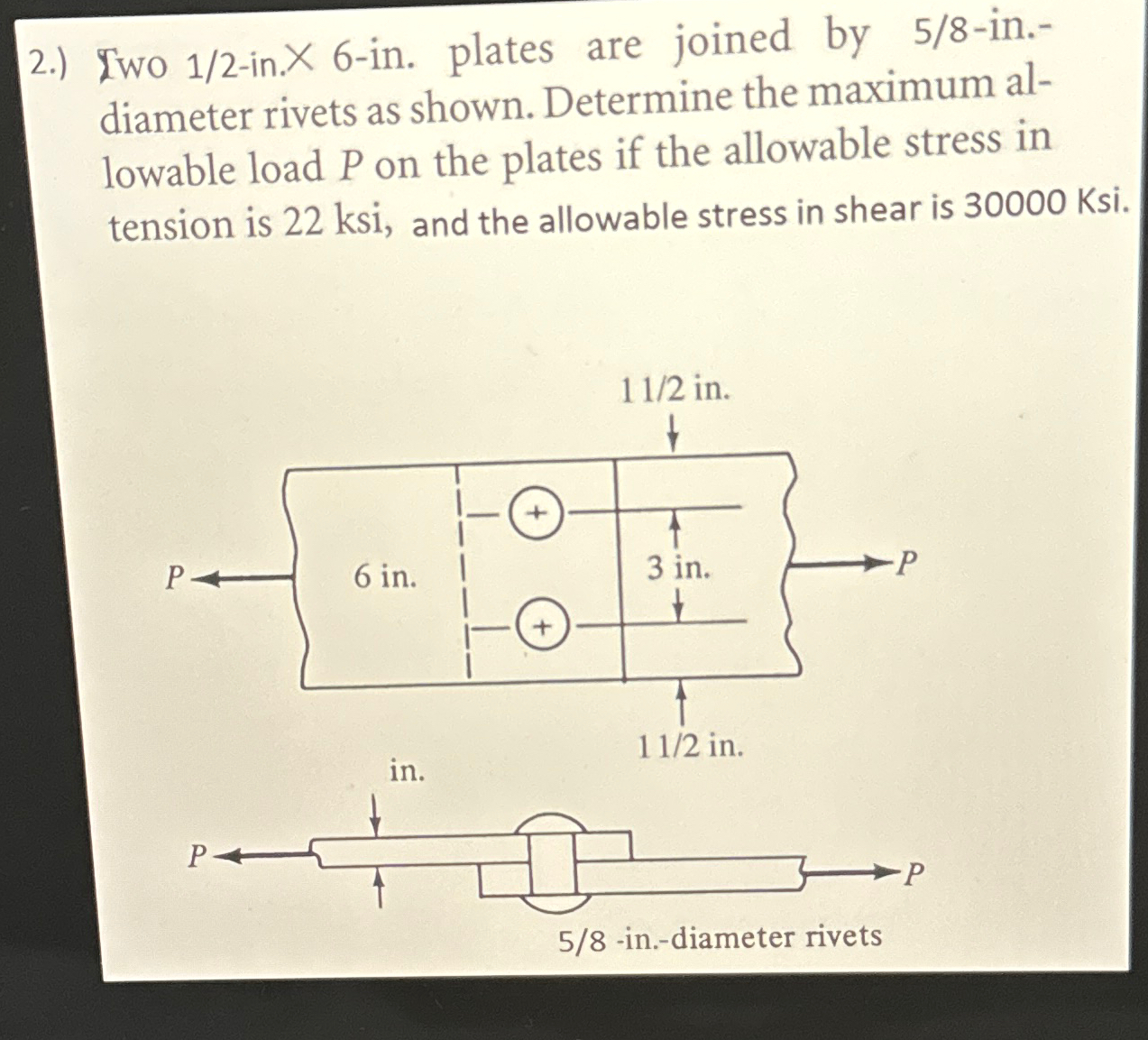

2.) Two 1/2-in.6-in. plates are joined by 5/8-in.diameter rivets as shown. Determine the maximum allowable load P on the plates if the allowable stress in tension is 22ksi, and the allowable stress in shear is 30000Ksi.
5/8-in.-diameter rivets
2 . ) Two 1 / 2 - in . 6 - in . plates are joined

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
