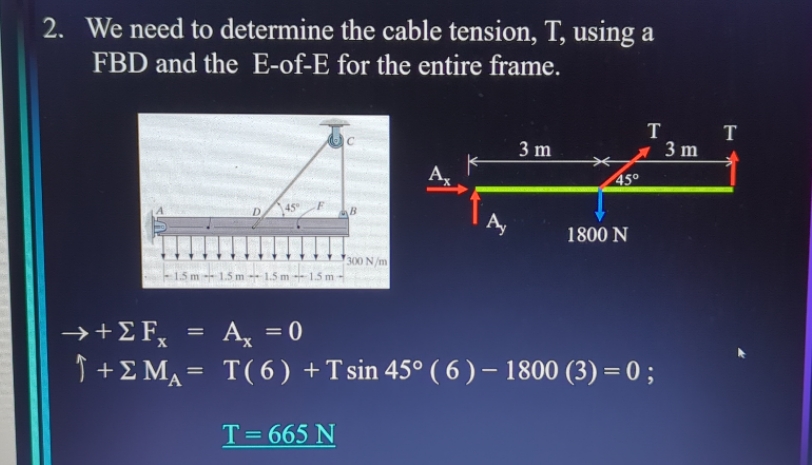

Question: 2. We need to determine the cable tension, T, using a FBD and the E-of-E for the entire frame. 45 B 300 N/m -15

2. We need to determine the cable tension, T, using a FBD and the E-of-E for the entire frame. 45 B 300 N/m -15 m 1.5 m-1.5m-1.5m- Ax 1 3 m T 3 m T 45 1800 N +Fx = Ax = 0 +M = T(6) + T sin 45 ( 6 ) 1800 (3) = 0 ; +EMA T = 665 N
