Question: 2) Write the Boolean expression equivalent to the following logic circuits. Do not simplify. (a) A IO B HD (b) A IO BIO C F

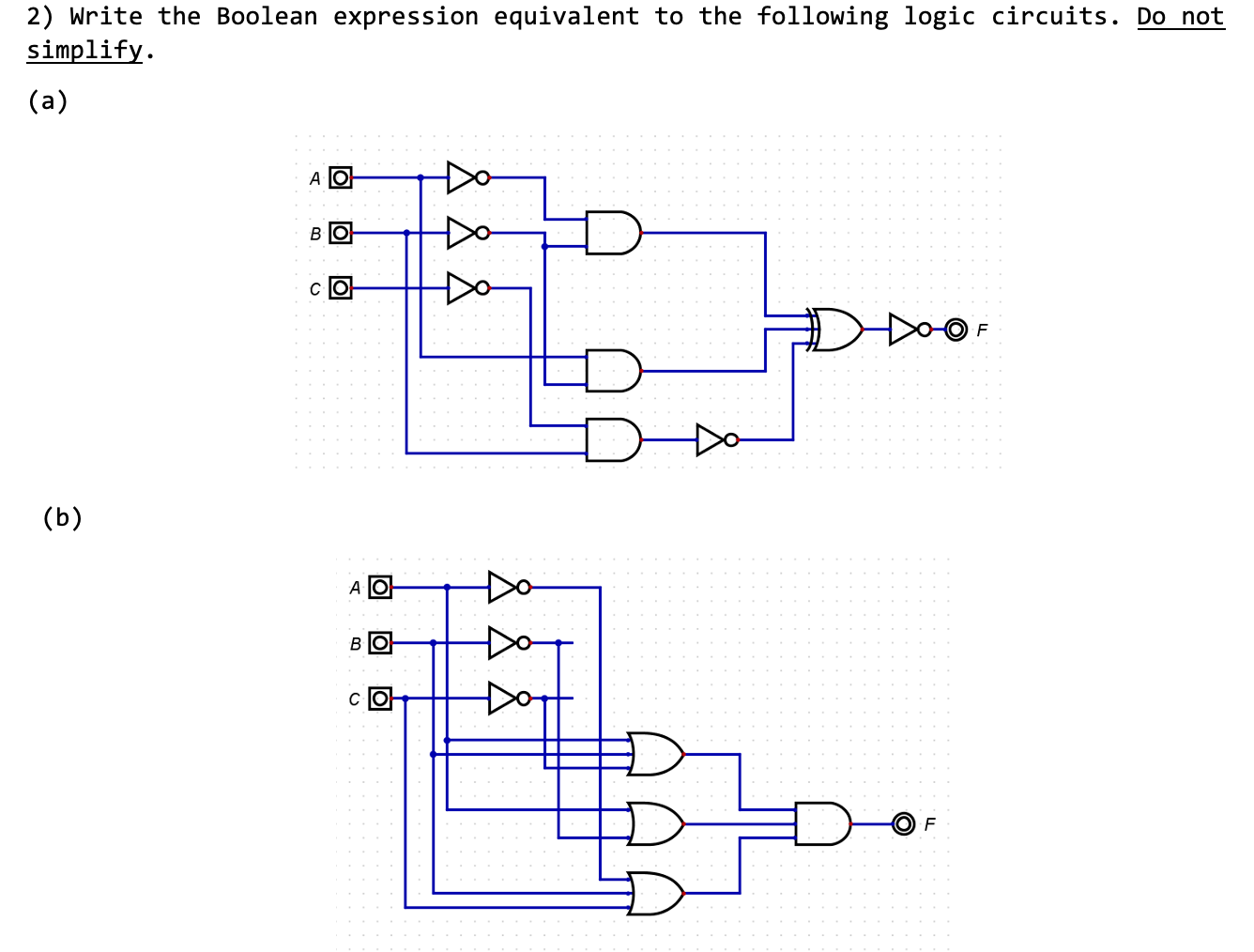

2) Write the Boolean expression equivalent to the following logic circuits.

2) Write the Boolean expression equivalent to the following logic circuits. Do not simplify. (a) A IO B HD (b) A IO BIO C F

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
