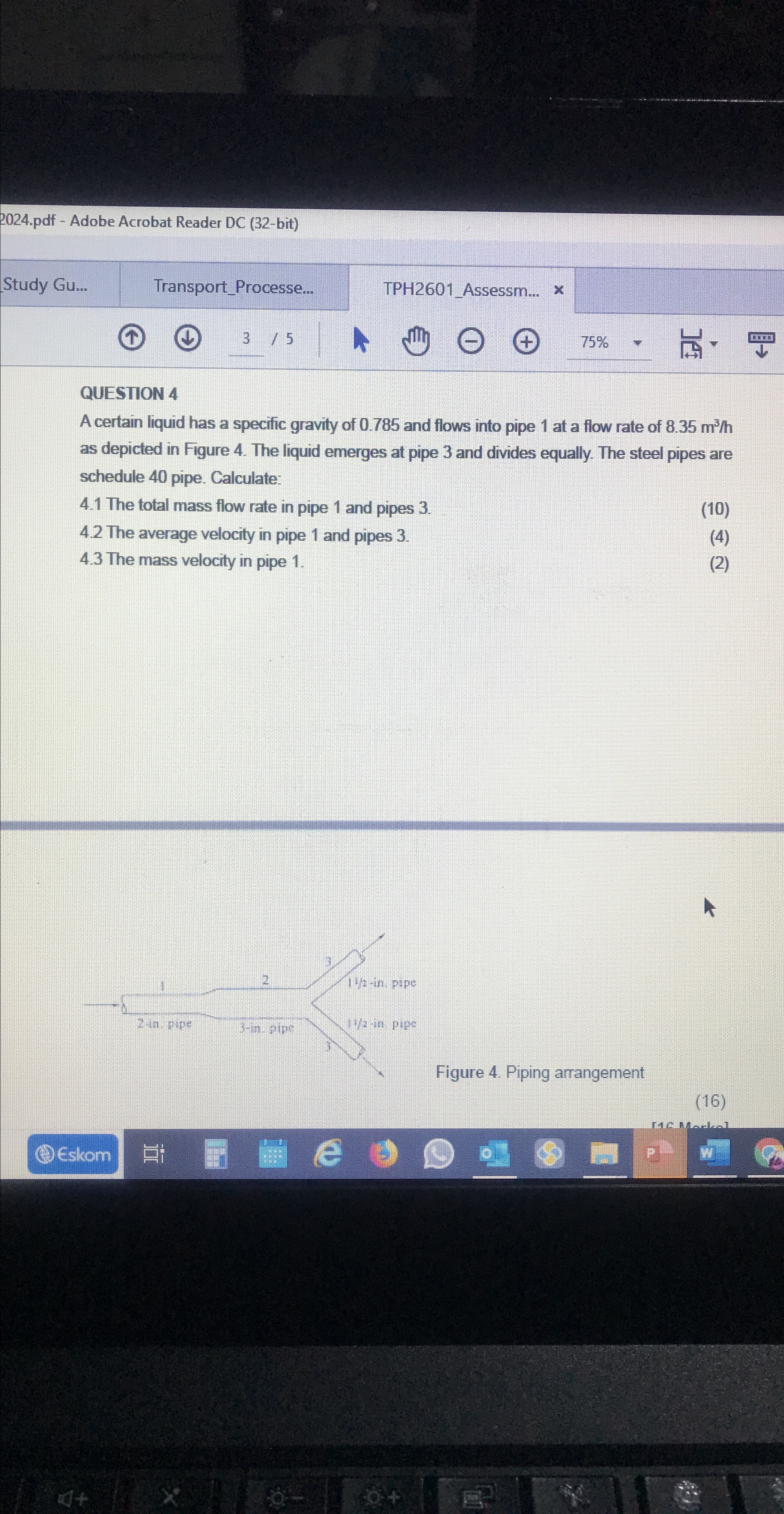

2024.pdf - Adobe Acrobat Reader DC (32-bit) Study Gu... Transport_Processe... 3 / 5 TPH2601 Assessm... X + 75% QUESTION 4 A certain liquid has a specific gravity of 0.785 and flows into pipe 1 at a flow rate of 8.35 m/h as depicted in Figure 4. The liquid emerges at pipe 3 and divides equally. The steel pipes are schedule 40 pipe. Calculate: 4.1 The total mass flow rate in pipe 1 and pipes 3. 4.2 The average velocity in pipe 1 and pipes 3. 4.3 The mass velocity in pipe 1. (10) (4) (2) 1-in. pipe 1/2-in pipe 24n. pipe Eskom #e 0+ Figure 4. Piping arrangement (16) W C
