Question: 2-11. For the Boolean functions E and F, as given in the following truth table: X Y Z E F 0 0 0 0 1

2-11. For the Boolean functions E and F, as given in

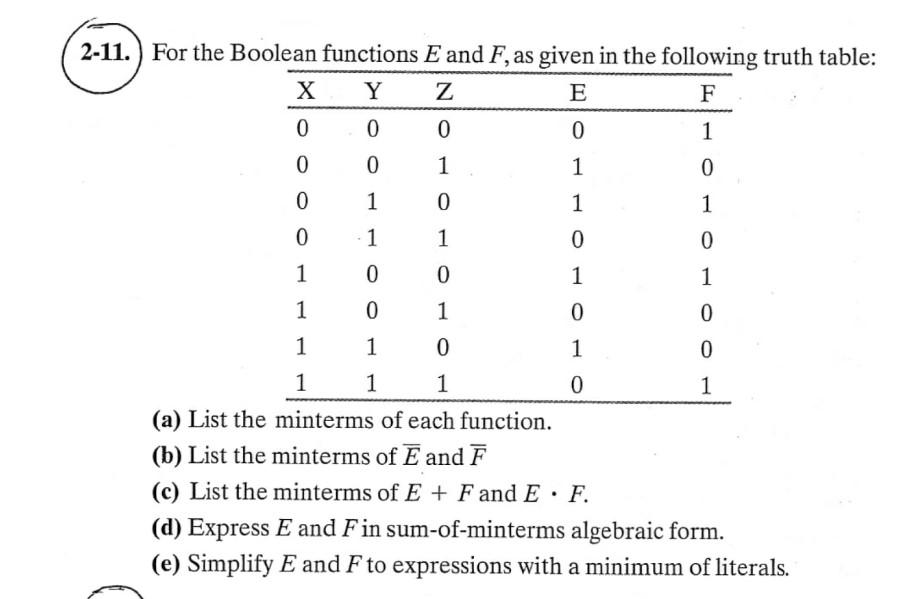

2-11. For the Boolean functions E and F, as given in the following truth table: X Y Z E F 0 0 0 0 1 0 0 1 1 0 0 1 0 1 1 0 1 1 0 0 1 0 0 1 1 1 0 1 0 0 1 1 0 1 0 1 1 1 0 1 (a) List the minterms of each function. (b) List the minterms of and F (c) List the minterms of E + F and E F. (d) Express E and Fin sum-of-minterms algebraic form. (e) Simplify E and F to expressions with a minimum of literals
