Question: Problem 6. (20 pts.) The Boolean Functions E and F are given by the following truth table: X Y Z E F Express E and

Problem 6. (20 pts.) The Boolean Functions E and F are

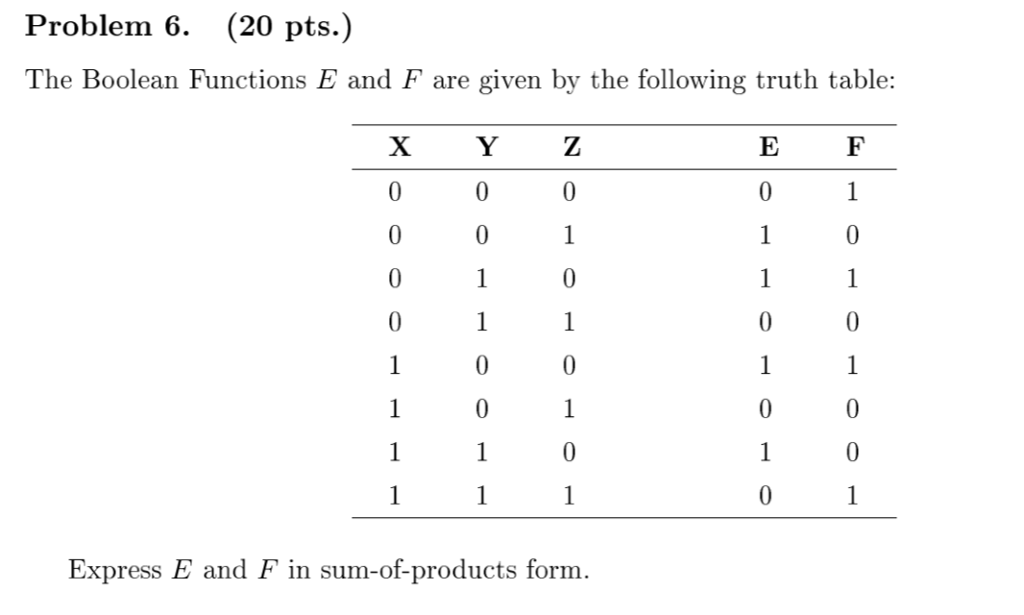

Problem 6. (20 pts.) The Boolean Functions E and F are given by the following truth table: X Y Z E F Express E and F in sum-of-products form

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Databases Questions!

Q:

Be sure please Thank you Fundamentals of computer systems Problem 3 (6pts). For the Boolean functions E and F, as given in the following truth table 0 0 10 o 1 0 1 1 0 1 1 0 I 1 1 1 1 0 1 a) List the...

Q:

Be sure please and clear Fundamentals of computer systems Problem 3 (6pts). For the Boolean functions E and F, as given in the following truth table: 0 0 0 1 0 0 0 10 o 1 0 1 1 0 110 1 1 1 1 1 0 1 a)...

Q:

Obtain the truth table of the following functions, and express each function in sum-of-minterms and product-of-maxterms form: (a) (XY + Z)(Y + XZ) b)(A bar + B)(B + C) (c) WxY bar + WXZ bar + WXY +...

Q:

1- Draw the logic diagram for the following Boolean expressions. The diagram should correspond exactly to the equation. Assume that the complements of the inputs are not available a. ABC+AB+AC b....

Q:

For the Boolean functions E and F, as given in the following truth table: Y Z F E 0 0 0 0 0 1 0 1 1 0 0 0 1 1 1 1 0 0 1 0 0 1 0 1 1 1 1 1 1 (a) List the minterms and maxterms of each function. (b)...

Q:

2-11. For the Boolean functions E and F, as given in the following truth table: X Y Z E F 0 0 0 0 1 0 0 1 1 0 0 1 0 1 1 0 1 1 0 0 1 0 0 1 1 1 0 1 0 0 1 1 0 1 0 1 1 1 0 1 (a) List the minterms of each...

Q:

Need help to answer this question please For the Boolean functions E and F, as given in the following truth table: X YZ 0 0 0 0 (a) List the minterms and maxterms of each function (b) List the...

Q:

Question 5 (10 points) For the Boolean functions E and F, as given in the following truth table: 0 (a) List the minterms and maxterms of each function (b) List the minterms of E' and F' (c) Express E...

Q:

Must show all of your work otherwise no credit. 1. Prove whether the following Boolean expression is correct or not: AB = AB 2. Simplify the following Boolean expression using a map XY + + YZ + X Y Z...

Q:

6-7 show all steps 6. For the Boolean function E and F, as given in the following truth table: 0 0 0 0 0 0 0 0 Express E and F in sum-of-minterms algebraic form. 7. Simplify the following Boolean...
