2.3

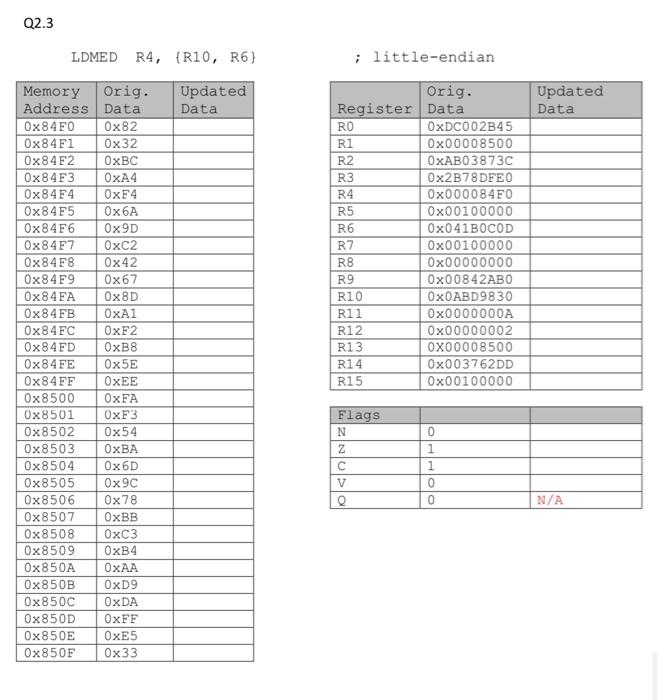

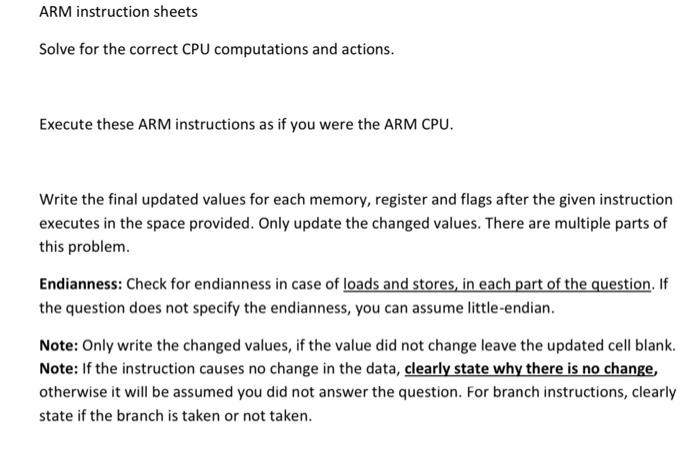

ARM instruction sheets Solve for the correct CPU computations and actions. Execute these ARM instructions as if you were the ARM CPU. Write the final updated values for each memory, register and flags after the given instruction executes in the space provided. Only update the changed values. There are multiple parts of this problem. Endianness: Check for endianness in case of loads and stores, in each part of the question. If the question does not specify the endianness, you can assume little-endian. Note: Only write the changed values, if the value did not change leave the updated cell blank. Note: If the instruction causes no change in the data, clearly state why there is no change, otherwise it will be assumed you did not answer the question. For branch instructions, clearly state if the branch is taken or not taken. Q2.3 LDMED R4, R10, R6) ; little-endian Updated Data Updated Data lll Memory Orig. Address Data Ox84F0 Ox82 Ox84F1 Ox32 Ox84F2 OxBC Ox8453 OxA4 Ox8454 OxF4 Ox8455 Ox6A Ox84F6 Ox9D Ox84F7 OxC2 Ox84F8 Ox 42 Ox8459 Ox67 Ox84 FA Ox8D Ox84FB OxAl Ox84 FC OxF2 Ox84FD OxB8 Ox84FE Ox5E Ox84FF OxEE Ox8500 OxFA Ox8501 OXF3 Ox8502 Ox54 Ox8503 OxBA Ox8504 Ox6D Ox8505 Ox9C 0x8506 Ox78 0x8507 OxBB Ox8508 OxC3 Ox8509 OxB4 Ox850A OxAA Ox850B OxD9 0x850C OxDA Ox850D OxFF Ox850E OxE5 Ox850F Ox33 Orig. Register Data RO OxDC002B45 R1 Ox00008500 R2 OXAB03873C R3 0x2B78DFEO R4 Ox000084F0 R5 Ox00100000 Ox041BOCOD R7 Ox00100000 R8 Ox00000000 R9 Ox00842ABO R10 Ox0ABD9830 R11 Ox0000000A R12 Ox00000002 R13 OX00008500 R14 Ox003762DD R15 Ox00100000 IN ON Flags N 0 1 O SONZ Holo Q N/A LLLLLLLL
