Question: ( 3 0 % ) Problem 1 : In the mechanical system shown below, assume that the input is the displacement u and the output

(30%) Problem 1:

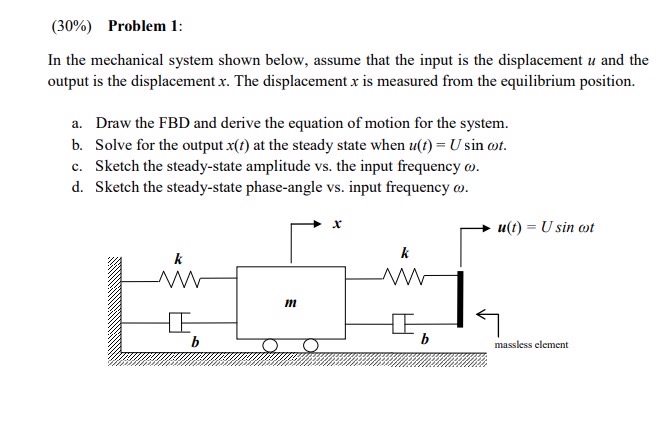

In the mechanical system shown below, assume that the input is the displacement u and the output is the displacement x. The displacement x is measured from the equilibrium position.
a. Draw the FBD and derive the equation of motion for the system.
b. Solve for the output x(t) at the steady state when u(t)=Usint.
c. Sketch the steady-state amplitude vs. the input frequency .
d. Sketch the steady-state phase-angle vs. input frequency .
( 3 0 % ) Problem 1 : In the mechanical system

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
