Question: 3 - 1 1 4 . Replace the loading on the frame by a single resultant force. Specify where its line of action intersects member

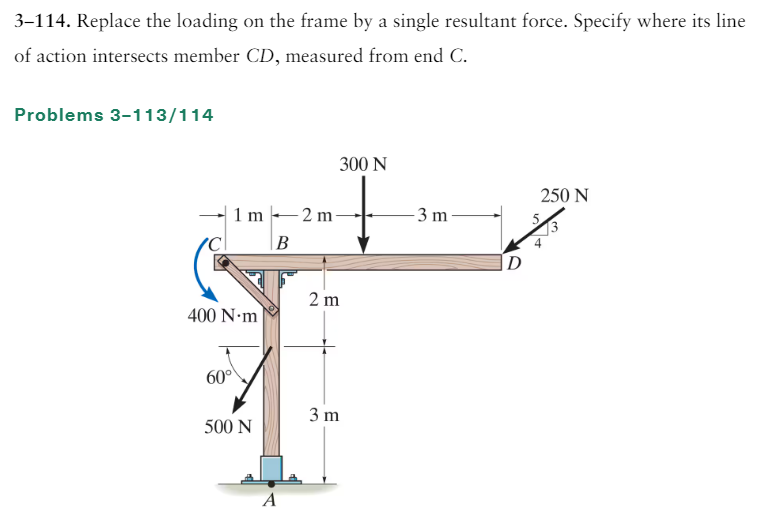

3-114. Replace the loading on the frame by a single resultant force. Specify where its line
of action intersects member CD, measured from end C.
Problems 3-113/114
3 - 1 1 4 . Replace the loading on the frame by a

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Mechanical Engineering Questions!

Q:

Replace the loading on the frame by a single resultant force. Specify where the force acts, measured from end A. Given: F1 = 450 N a = 2 m F2 = 300 N b = 4 m F3 = 700 N c = 3 m θ = 60 deg M =...

Q:

Replace the loading on the frame by a single resultant force. Specify where the force acts , measured from end B. Given: F1 = 450 N a = 2 m F2 = 300 N b = 4 m F3 = 700 N c = 3 m θ = 60 deg M =...

Q:

Problem 3 Replace the loading on the frame by a single resultant force. Specify where its line of action intersects member AB, measured from A. F. = 350 N, F, = 500 N, F) = 600 N, M = 150 Nm, 0 = 60...

Q:

Replace the loading on the frame by a single resultant force. Specify where its line of action intersects member CD, measured from end C. Given: F1 = 500 N a = 3 m F2 = 300 N b = 2 m c = 1 m F3 = 250...

Q:

Replace the loading on the frame by a single resultant force. Specify where its line of action intersects member AB, measured from A. Given: F1 = 500 N a = 3 m F2 = 300 N b = 2 m c = 1 m F3 = 250 N d...

Q:

Replace the loading on the frame by a single resultant force. Specify where its line of action intersects member AB, measured from A. Given: F1 = 300 lb M = 600 lb⋅ ft F2 = 200 lb a = 3 ft b = 4...

Q:

Replace the force system acting on the frame by an equivalent resultant force, and specify where the resultant's line of action intersects member AB(Figure 1). Suppose that F1 = 30 lb, F2 = 50 lb,...

Q:

Replace the force and couple system acting on the frame by an equivalent resultant force and specify where the resultant?s line of action intersects member BC, measured from B. 2 ft 150 lb 4 ft 500...

Q:

Replace the force system acting on the frame by an equivalent resultant force and specify where the resultant's line of action intersects member AB, measured from point A. Given: F1 = 35 lb a = 2 ft...

Q:

Replace the force and couple system acting on the frame by an equivalent resultant force and specify where the resultant?s line of action intersects member AB, measured from A. 2 ft 150 Ib 4 ft 500...
