Question: ( 3 0 % ) Problem 2 A utility pole is supporting a cable with a tension force of 2 5 0 lb . ,

(30%) Problem 2

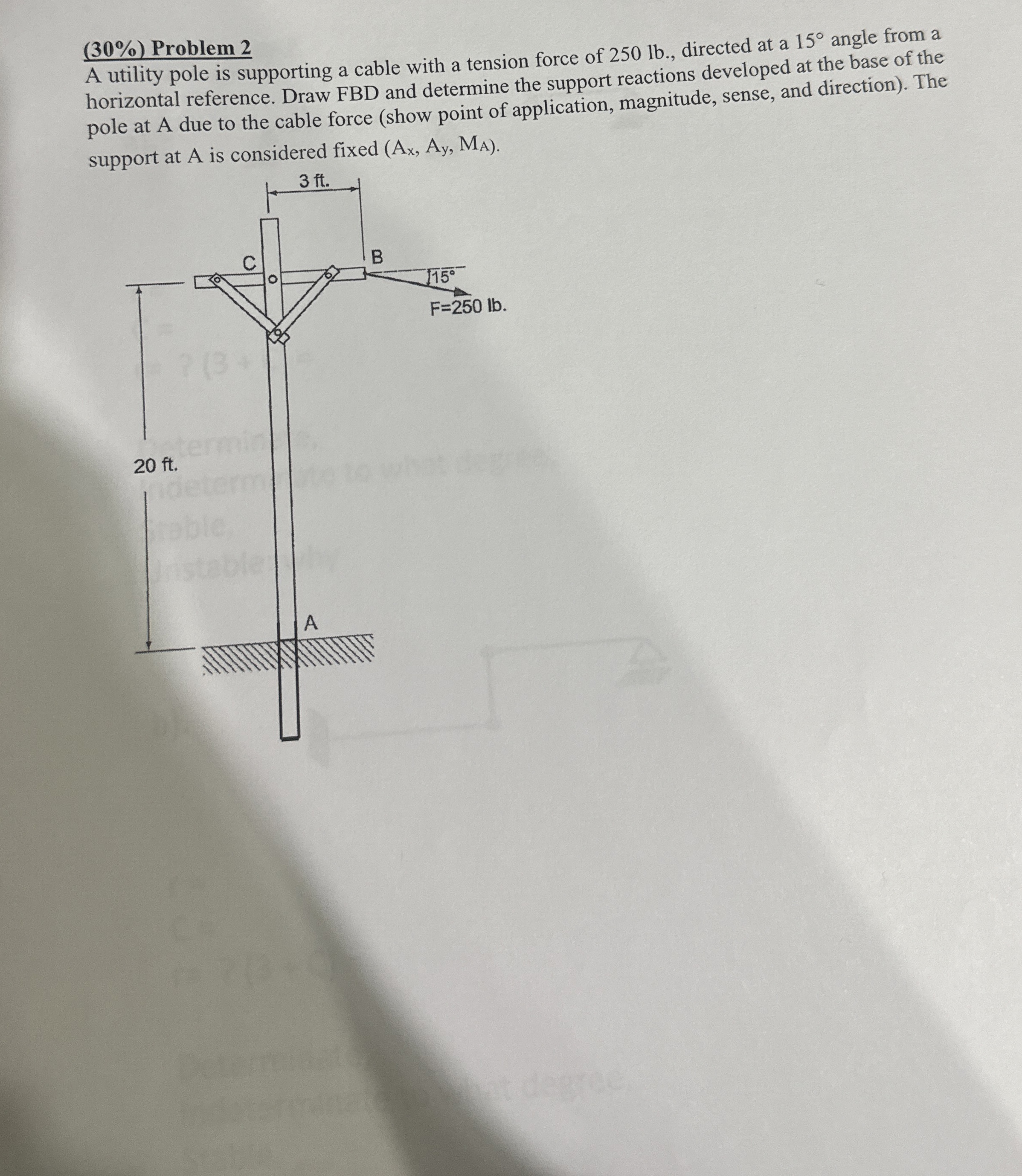

A utility pole is supporting a cable with a tension force of 250 lb ., directed at a 15 angle from a
horizontal reference. Draw FBD and determine the support reactions developed at the base of the
pole at A due to the cable force (show point of application, magnitude, sense, and direction). The
sundort at A is considered fixed (Ax,Ay,MA).
( 3 0 % ) Problem 2 A utility pole is supporting

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
