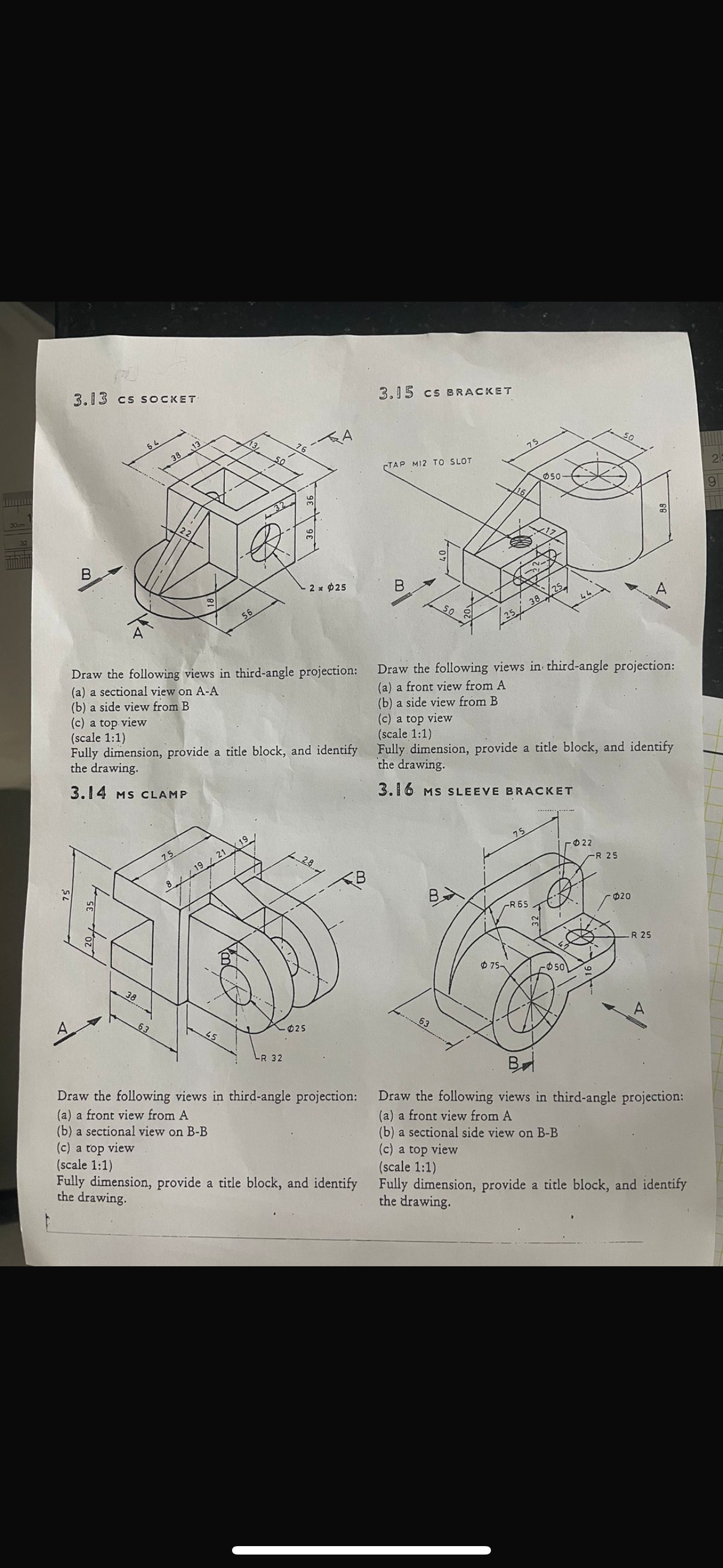

$3\mathrm{.}13$ CS SOCKET

$3\mathrm{.}15$ cs bracket

Draw the following views in third$-$angle projection:

$($a$)$ a sectional view on $A-A$

$($b$)$ a side view from $B$

$($c$)$ a top view

$($scale $1$:$1)$

Fully dimension, provide a title block, and identify

the drawing.

$3\mathrm{.}14$ MS CLAMP

Draw the following views in third$-$angle projection:

$($a$)$ a front view from $A$

$($b$)$ a side view from $B$

$($c$)$ a top view

$($scale $1$:$1)$

Fully dimension, provide a title block, and identify

the drawing.

$3\mathrm{.}16$ MS SLEEVE BRACKET

Draw the following views in third$-$angle projection:

$($a$)$ a front view from A

$($b$)$ a sectional side view on B$-$B

$($c$)$ a top view

$($scale $1$:$1)$

Fully dimension, provide a title block, and identify

the drawing.
