Question: 3 . 2 2 A rectangular gate ( width w = 2 m ) is hinged as shown, with a stop on the lower edge.

3.22 A rectangular gate (width w=2m) is hinged as shown, with a stop on the lower edge. Determine the depth H that will tip the gate.
3 . 2 2 A rectangular gate ( width w = 2 m ) is

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Civil Engineering Questions!

Q:

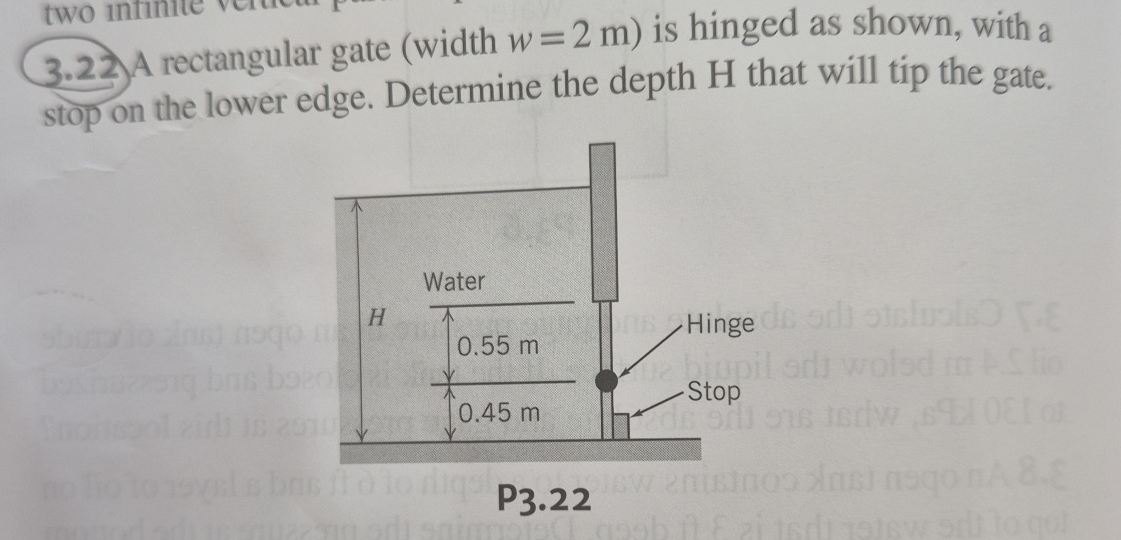

3.22 A rectangular gate (width w=2 m) is hinged as shown, with a stop on the lower edge. Determine the depth H that will tip the gate. Water H Hinge 0.55 m -Stop 0.45 m P3.22
