PROBLEM $53$

A rectangular beam has the following properties: $b_w=300mm,d=525mm,f_c^{\text{'}}=21$MPa, diameter of stirrup $=10mm.f_{yr}=275$MPa. Determin the required$-$spacing vertical U$-$stirrup when the required shear strength $V_u$ is a $40kN,)90kN,$c$)(120$kN$,$ d$)300kN$ and e$)500kN,$ Use NSCP $2015.$

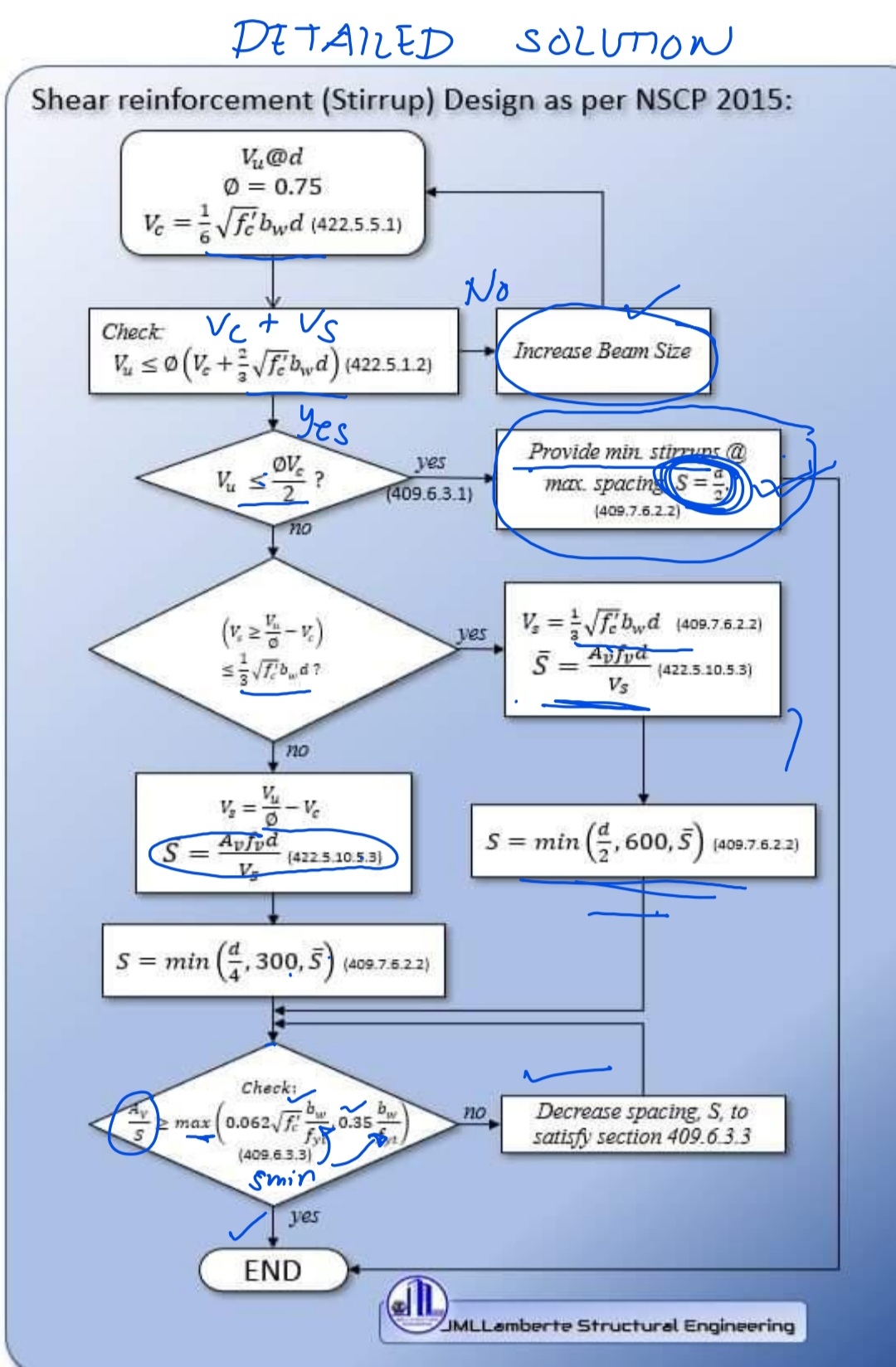

DETAILED SOLUTION

Shear reinforcement $($Stirrup$)$ Design as per NSCP $2015$:Solve the problem using the detailed solution in the picture. Answer with a complete solution
