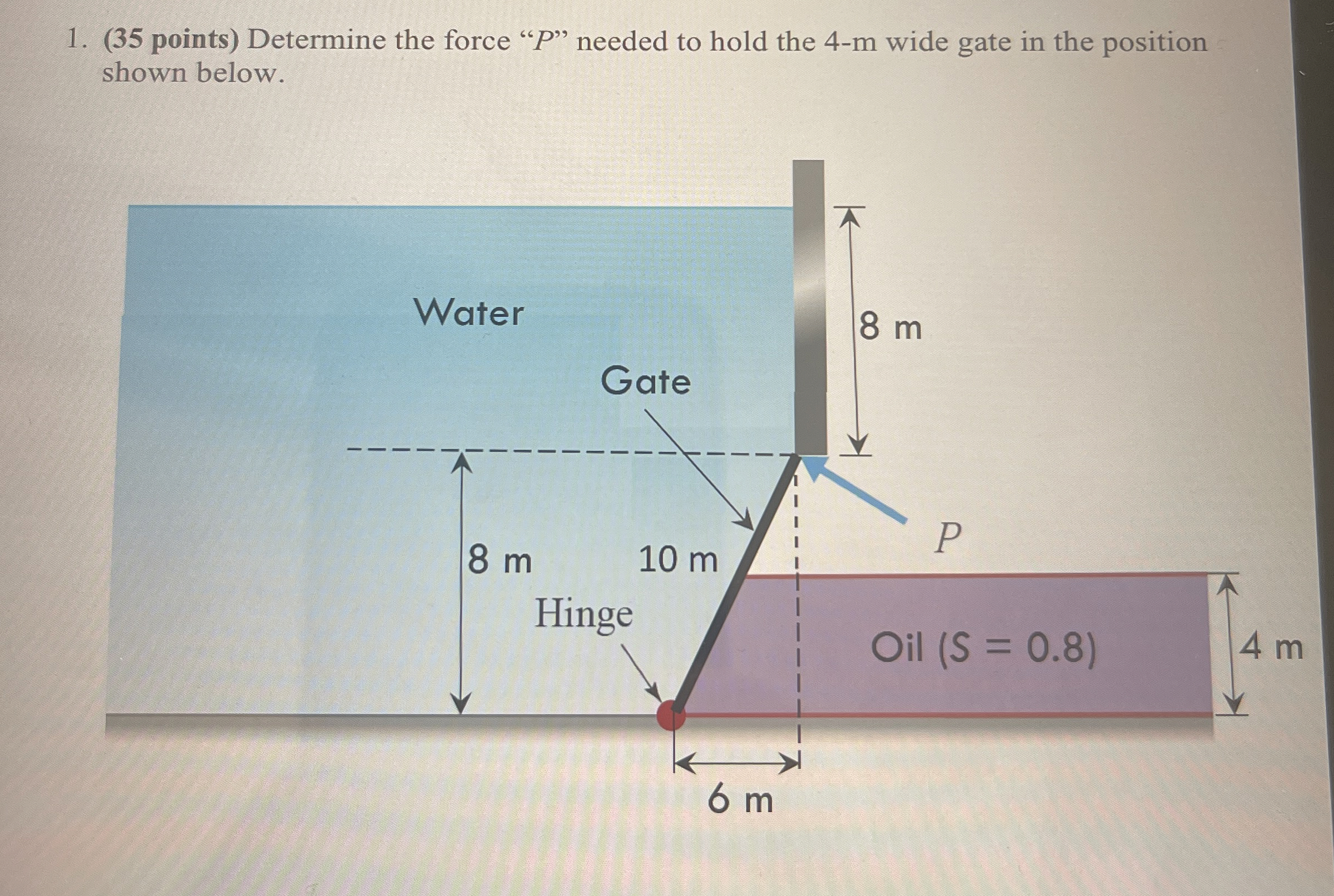

Question: ( 3 5 points ) Determine the force P needed to hold the 4 - m wide gate in the position shown below.

(35 points) Determine the force "P" needed to hold the 4-m wide gate in the position
shown below.
( 3 5 points ) Determine the force " P " needed

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
