Question: ( 3 5 points ) For the flow shown below, relative to a fixed reference frame, find the acceleration of a fluid particle at Point

(35 points) For the flow shown below, relative to a fixed reference frame, find the

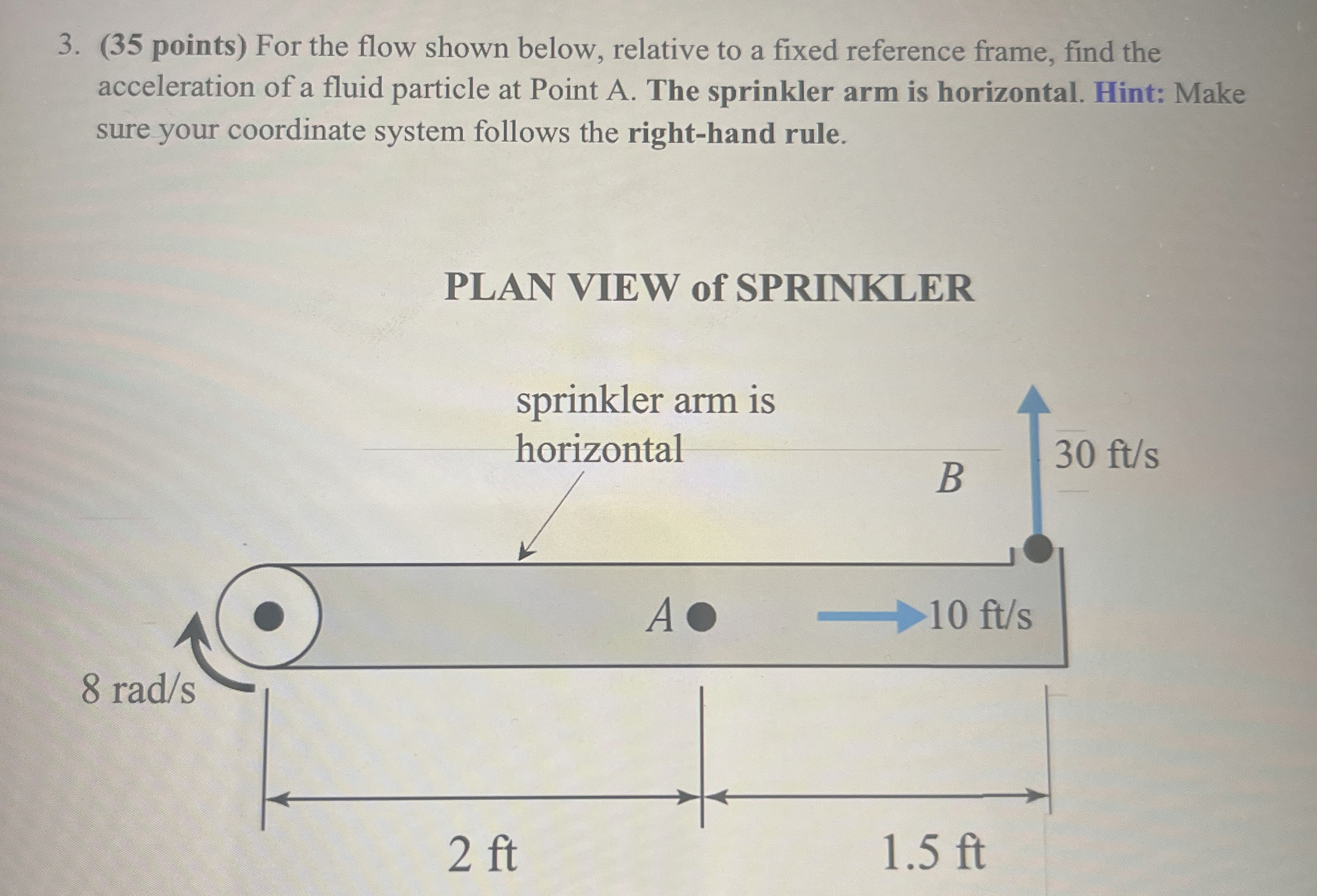

acceleration of a fluid particle at Point A. The sprinkler arm is horizontal. Hint: Make
sure your coordinate system follows the right-hand rule.
PLAN VIEW of SPRINKLER
( 3 5 points ) For the flow shown below, relative

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
