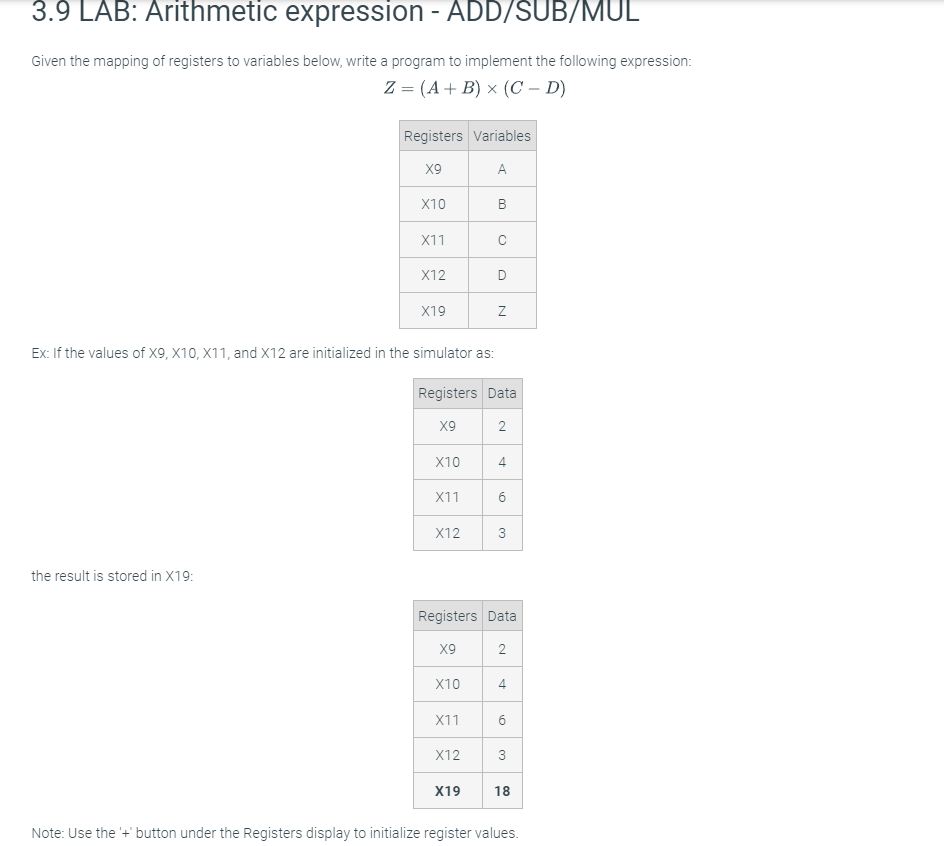

$3\mathrm{.}9$ LAB: Arithmetic expression $-$ ADD$/$SUB$/$MUL

Given the mapping of registers to variables below, write a program in LEGv$8$ to implement the following expression: Z $=($A$+$B$)$ X $($C$-$D$)3\mathrm{.}9$ LAB: Arithmetic expression $-$ ADD$/$SUB$/$MUL

Given the mapping of registers to variables below, write a program to implement the following expression:

Ex: If the values of $x9,x10,x11,$ and $x12$ are initialized in the simulator as:

the result is stored in $x19$ :

Note: Use the $\text{'}+\text{'}$ button under the Registers display to initialize register values.

This zyLab platform supports the following LEGv$8$ instructions:

Arithmetic: ADD, ADDS, ADDI, ADDIS, MUL, SDIV, SUB, SUBS, SUBI, SUBIS

Data transfer: LDURB, LDUR, LDURH, LDURSW, MOVK, MOVZ, STURB, STUR, STURH, STURW

Logical: AND, ANDI, EOR, EORI, ORR, ORRI, LSL$,$ LSR

Conditional branch: B$.$HS$,$ B$.$LO$,$ B$.$EQ$,$ B$.$GT$,$ B$.$GE$,$ B$.$HI$,$ B$.$LT$,$ B$.$LE$,$ B$.$LS$,$ B$.$MI$,$ B$.$NE$,$ B$.$VC$,$ B$.$VS$,$ B$.$PL$,$ CBZ$,$ CBNZ

Unconditional jump: B$,$ BL$,$ BR
