Question: 3. A construction project is broken down into the following activities. (10 points) Activity Immediate Predecessor Time (Weeks) K none 12 L K 10 N

3. A construction project is broken down into the

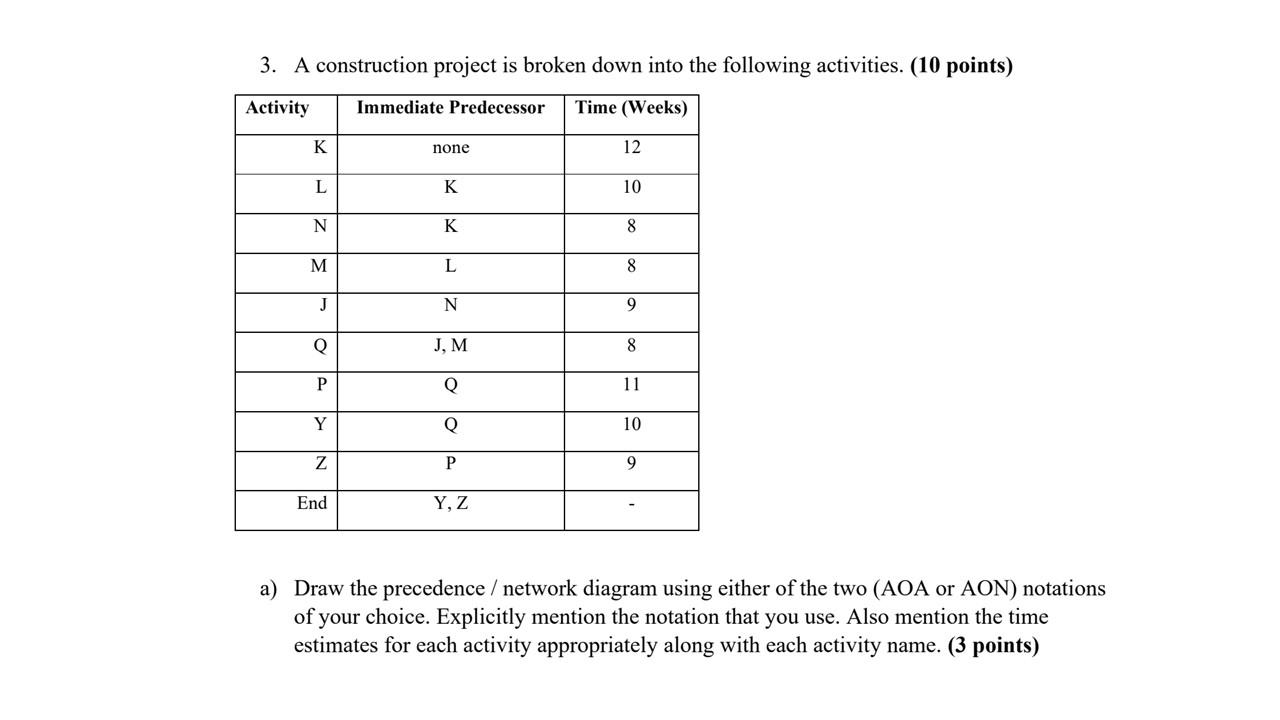

3. A construction project is broken down into the following activities. (10 points) Activity Immediate Predecessor Time (Weeks) K none 12 L K 10 N K 8 M L 8 J N 9 Q J, M 8 P Q 11 Y Q 10 End Y, Z a) Draw the precedence / network diagram using either of the two (AOA or AON) notations of your choice. Explicitly mention the notation that you use. Also mention the time estimates for each activity appropriately along with each activity name. (3 points)

Step by Step Solution

There are 3 Steps involved in it
