Question: 3 . A gravity concrete retaining wall is shown in Figure 2 . The properties of the backfill and the foundation soil are also shown

3. A gravity concrete retaining wall is shown in Figure 2. The properties of the backfill and the foundation soil are also shown in the figure. Use an active earth pressure coefficient \(\mathrm{Ka}=0.212\). Determine the external stability of the retaining wall, in terms of overturning and sliding.

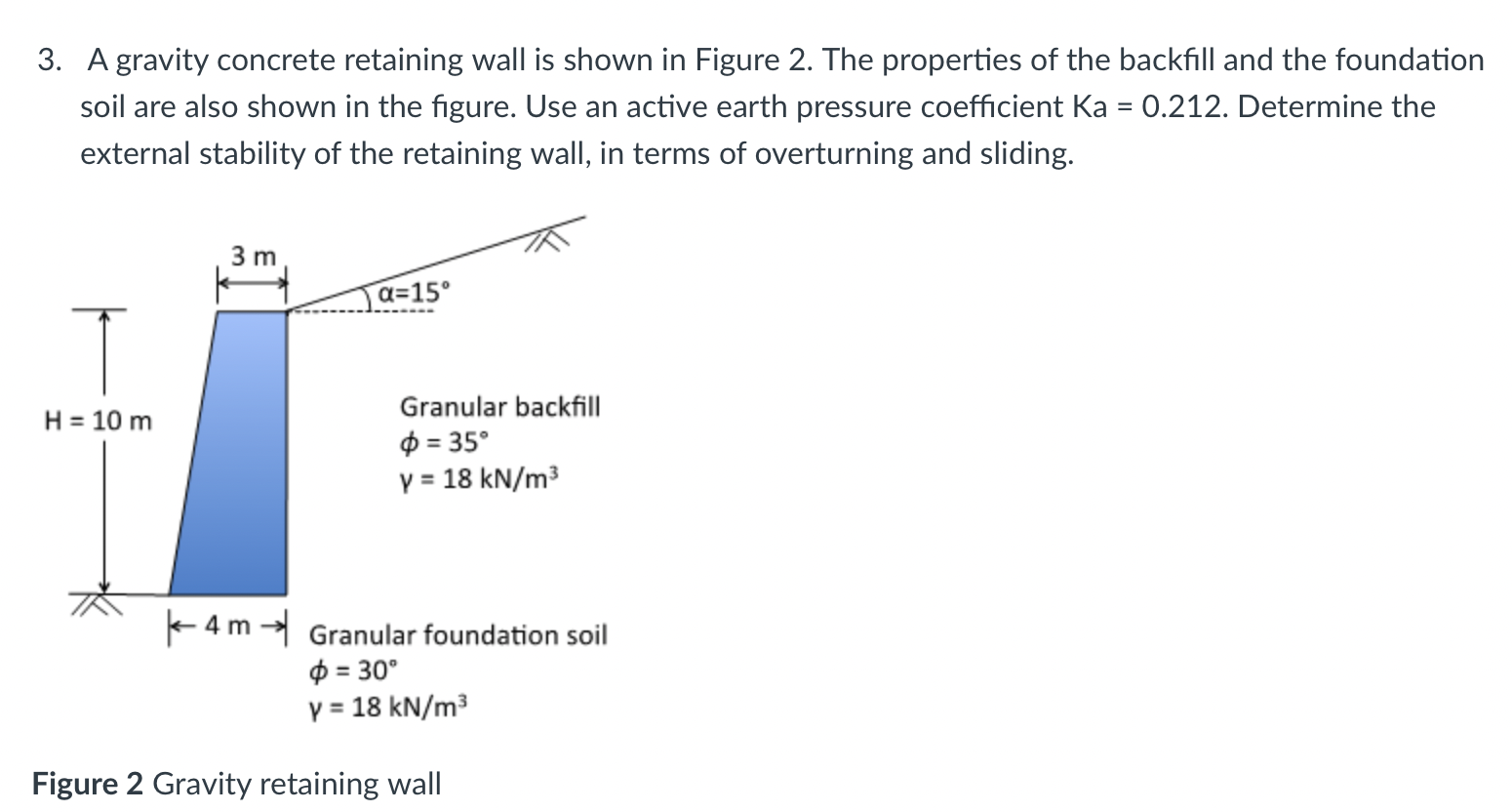

Figure 2 Gravity retaining wall
3 . A gravity concrete retaining wall is shown in

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
