Question: 3. A parallel plate capacitor is designed as shown in the figure. The capacitor has a cross-sectional area of A - (10 x 12) mm',

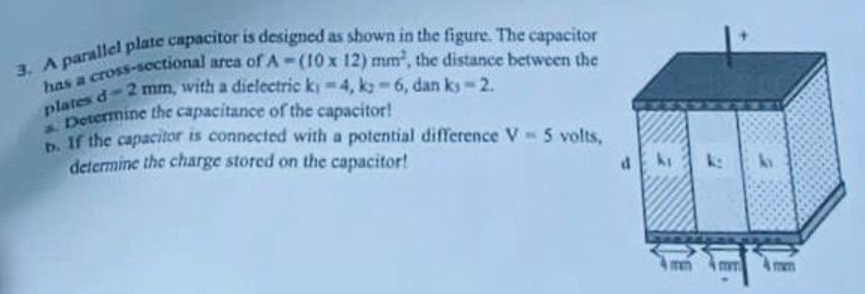

3. A parallel plate capacitor is designed as shown in the figure. The capacitor has a cross-sectional area of A - (10 x 12) mm', the distance between the plates d 2 mm, with a dielectric ki = 4, ky - 6, dan ks - 2. Determine the capacitance of the capacitor! b. If the capacitor is connected with a potential difference V - 5 volts. determine the charge stored on the capacitor! MIT

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
