3: Calculate the equivalent resistance including uncertainty using the data from table 1?4: what is the current though R3?5: Using Ohms law and data from table 2, calculate the equivalent resistance of the circuit. Is this value bracketed by the result of problem 3?

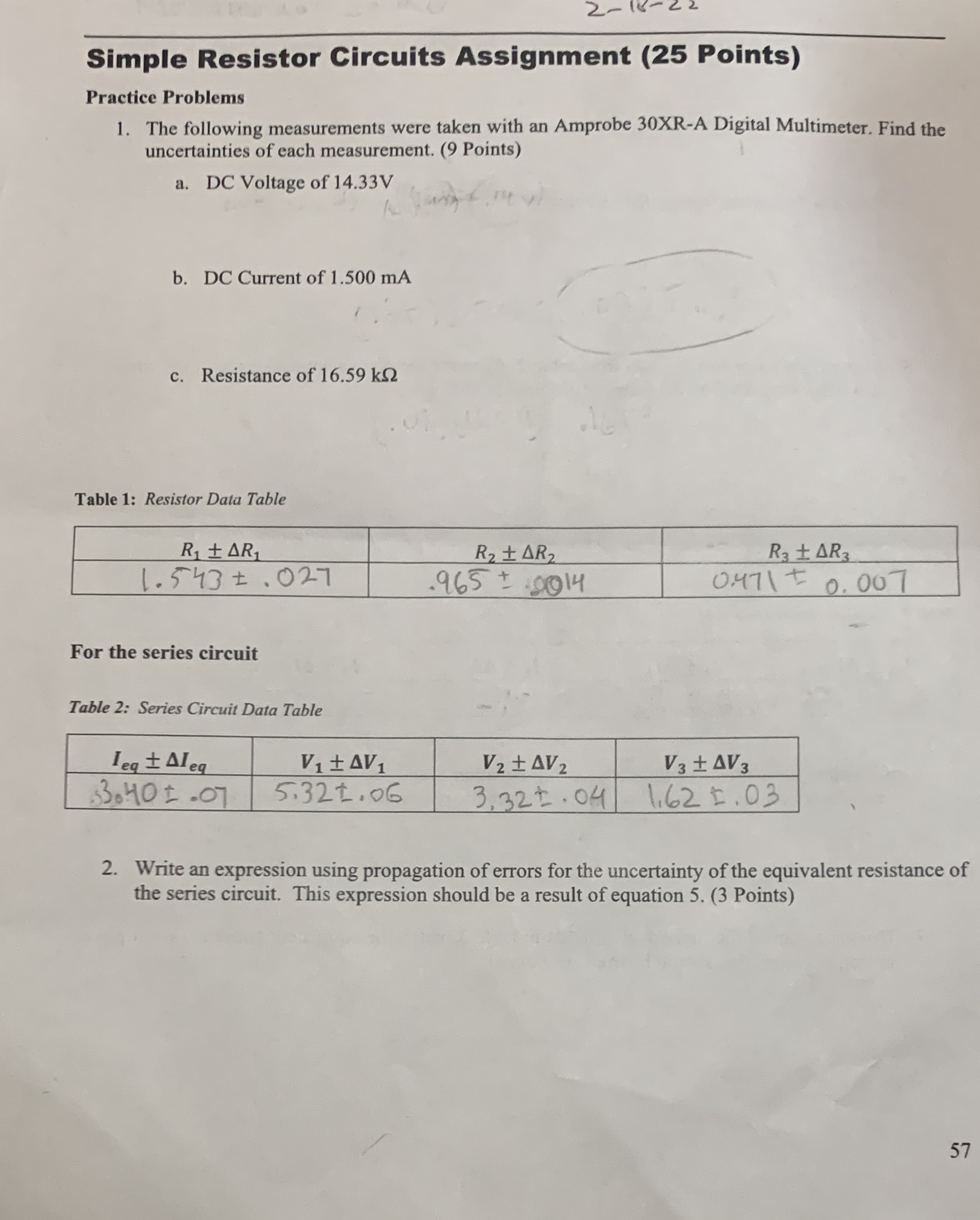

Simple Resistor Circuits Assignment (25 Points) Practice Problems 1. The following measurements were taken with an Amprobe 30XR-A Digital Multimeter. Find the uncertainties of each measurement. (9 Points) a. DC Voltage of 14.33V b. DC Current of 1.500 mA c. Resistance of 16.59 ko Table 1: Resistor Data Table R1 + AR R2 + ARZ R3 + AR3 1. 543 + . 027 965 +0014 0.471 0. 007 For the series circuit Table 2: Series Circuit Data Table Leg + Aleg Vit AV 1 V2 + AV 2 V3 + AV 3 $30 40t-07 5:32t. 06 3, 32#. 04 1,62 1. 03 2. Write an expression using propagation of errors for the uncertainty of the equivalent resistance of the series circuit. This expression should be a result of equation 5. (3 Points) 57
