Question: ( 3 ) Consider a long slender beam with a length L , constant Young's modulus E , and constant second order moments of area

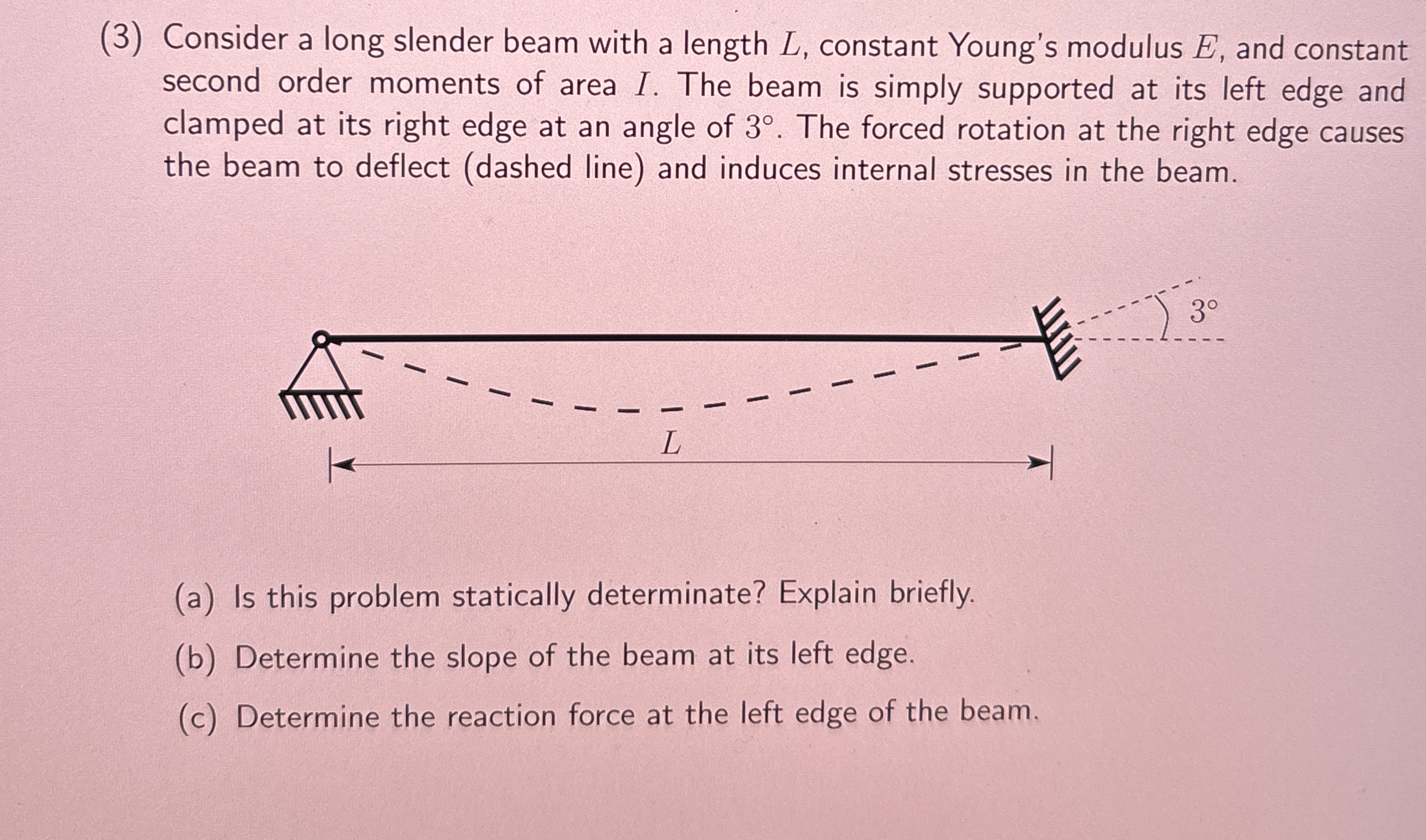

(3) Consider a long slender beam with a length L, constant Young's modulus E, and constant second order moments of area I. The beam is simply supported at its left edge and clamped at its right edge at an angle of 3. The forced rotation at the right edge causes the beam to deflect (dashed line) and induces internal stresses in the beam.
(a) Is this problem statically determinate? Explain briefly.
(b) Determine the slope of the beam at its left edge.
(c) Determine the reaction force at the left edge of the beam.
