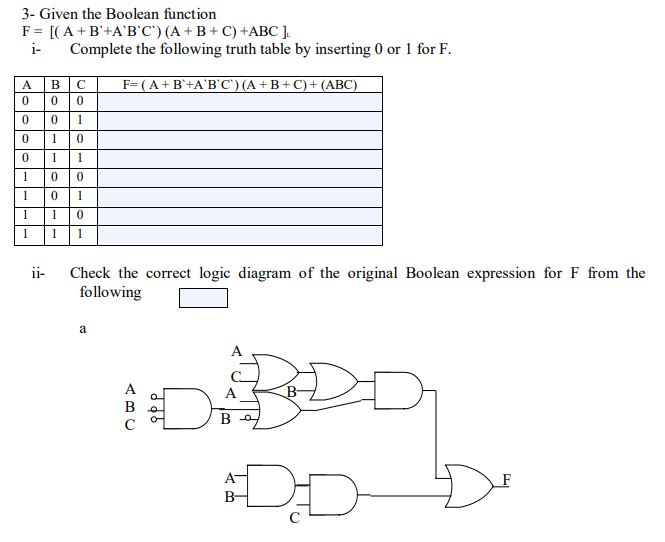

Question: 3- Given the Boolean function F = [( A + B'+A'B'C') (A + B + C) +ABC ]. Complete the following truth table by inserting

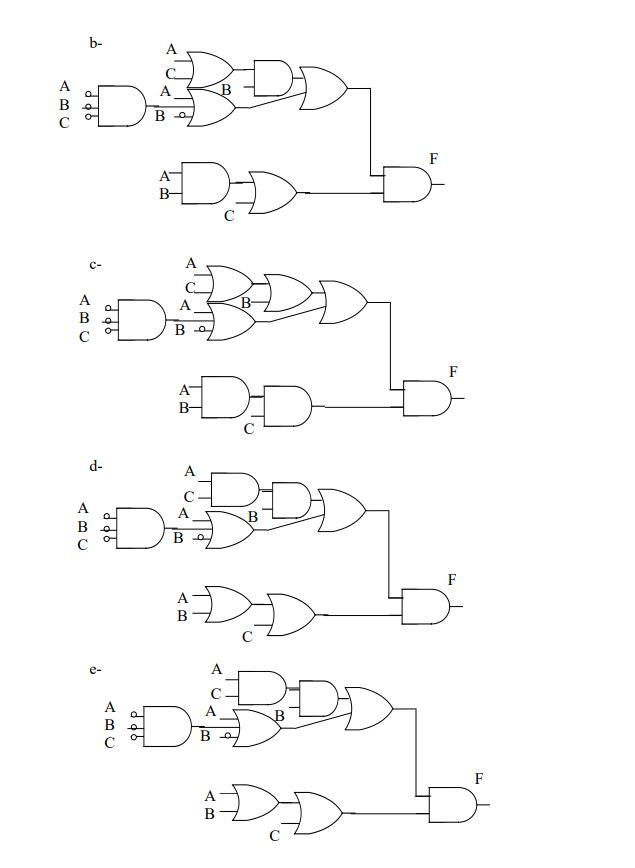

3- Given the Boolean function F = [( A + B'+A'B'C')

(A + B + C) +ABC ]. Complete the following truth table

by inserting 0 or 1 for F. A B C F (AB

3- Given the Boolean function F = [( A + B'+A'B'C') (A + B + C) +ABC ]. Complete the following truth table by inserting 0 or 1 for F. A B C F (AB +A B'C) (A B + C)+ (ABC) 1 00 0 Cliak tl mat b be iBn rtin Bm the NM following C

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related Databases Questions!

Given the Boolean function F = [(A + B' + A' B' C') (A + B + C) + ABC]_L i- Complete the following truth table by inserting 0 or 1 for F

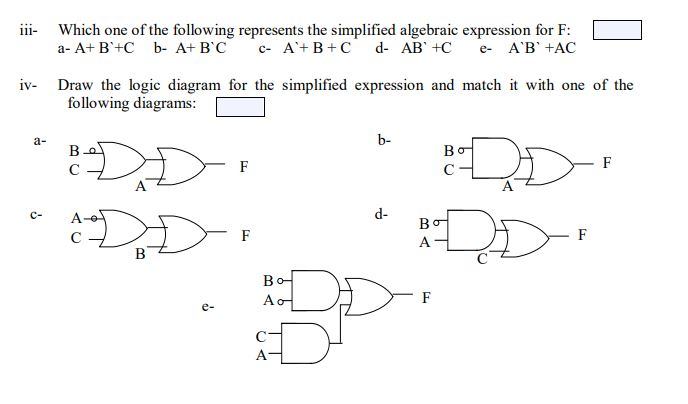

Given the Boolean function F = [( A + B`+A`B`C`) (A + B + C) +ABC ]L Which one of the following represents the simplified algebraic expression for F: a- A+ B`+C b- A+ B`C c- A`+ B + C d- AB` +C e-...

3- Given the Boolean function: F(A,B,C) = [A`BC+A (A+B+A BC) (A+B+C)]L - Complete the following truth table by inserting 0 or 1 for F. A B F 0 0 0 0 0 1 0 1 0 0 1 1 1 0 0 1 0 1 1 1 0 1 1 1 ii- Select...

3- Given the Boolean function 1-Complete the following truth table by inserting 0 or 1 for F. A BC F-(A+B +A B C) (A+B+C) +(ABC) +A BC 0 01 0 1 01 110 ii- Check the correct logic diagram of the...

VIRGIN 12:59 Welcome to your first assignment. This assignment consists efa mumber of "short-snapper questions on digital logic and Boolean algebra For each question, you must show all the necessary...

3- Given the Boolean function i- Complete the following truth table by inserting 0 or 1 for F. A BCF- (A+B'+A'B'C) (A+B+C)+(ABC) +A BC ii- check the correct logic diagram of the original Boolean...

Use K-Map to Simplify a 4-Variable Function with Dont-Care Conditions In this part of the procedure, you will use K-Map to simplify a 4-variable function and verify your results following the same...

ANSWER THE FOLLOWING QUESTIONS 2) Draw logic diagram of original and simplified Boolean expressions of Question 1. 3) Implement the Boolean function F given below: abc + dab + dab 1- With AND, OR and...

simplify to algebraic expression. - Which one of the following represents the simplified algebraic expression for F: a-A+B+C - AB+C CA+B+C d- A'(BC+BC) e A'B +AC - NONE Answer 3- Given the Boolean...
