Question: Given the Boolean function F = [(A + B' + A' B' C') (A + B + C) + ABC]_L i- Complete the following truth

Given the Boolean function F = [(A + B' + A'

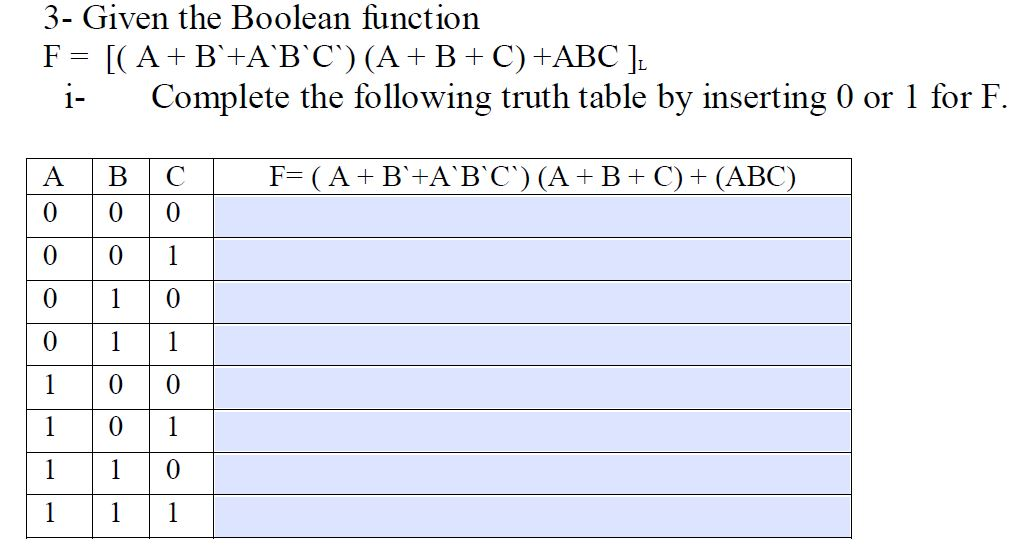

Given the Boolean function F = [(A + B' + A' B' C') (A + B + C) + ABC]_L i- Complete the following truth table by inserting 0 or 1 for F

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
