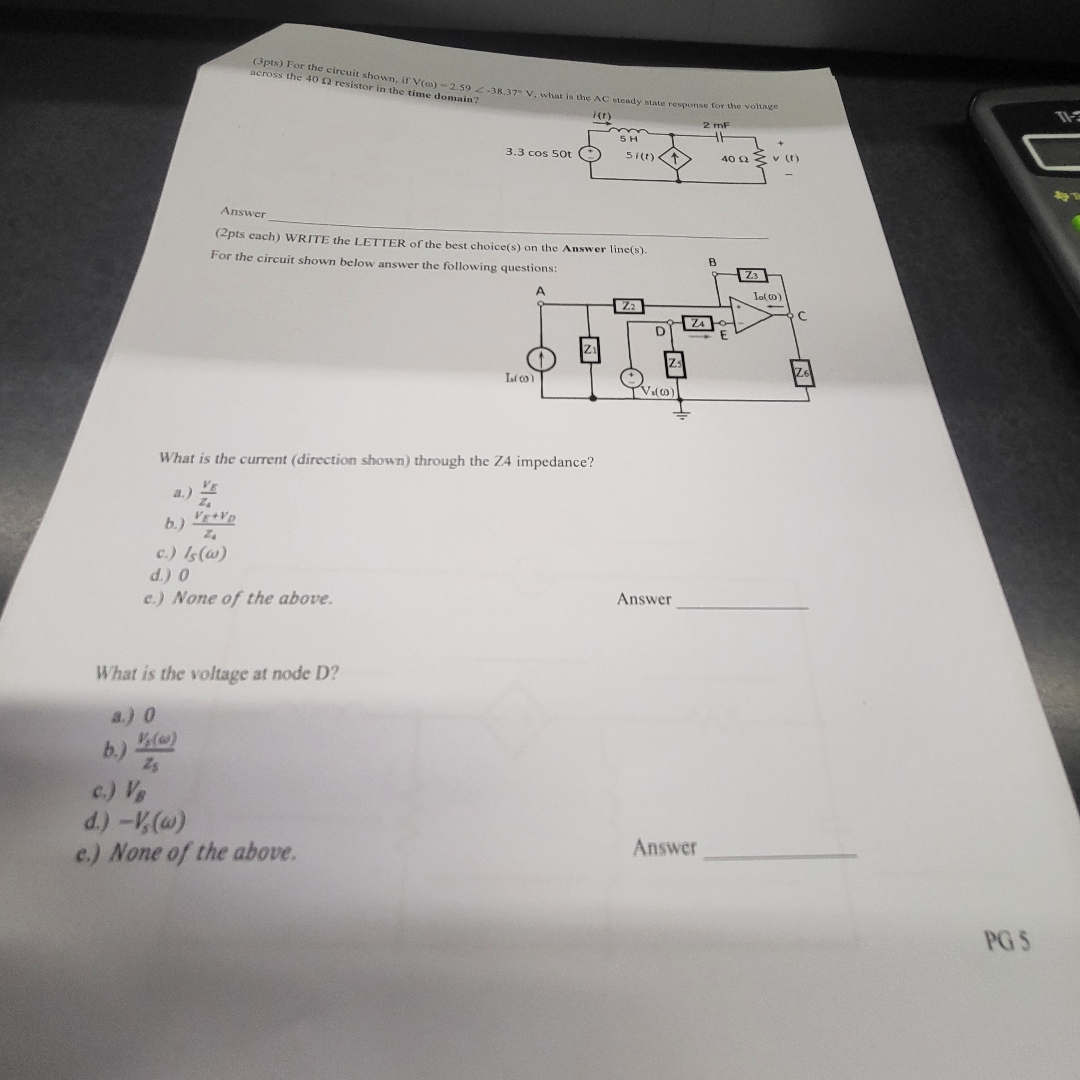

$(3$pts$)$ For the circuit shown, if what is the AC steady state response for the voltage

across the $40$ resistor in the time domain across the $40$ resistor in the time domain?

Answer $q,$

$(2$pts each$)$ WRITE the LETTER of the best choice$($s$)$ on the Answer line$($s$).$

For the circuit shown below answer the following

What is the current $($direction shown$)$ through the Z$4$ impedance?

a$.)\frac{V_r}{z_s}$

b$.)\frac{v_K+v_0}{z_0}$

c$.)I_S()$

d$.)0$

c$.)$ None of the above.

Answer

What is the voltage at node D$?$

a$.)0$

b$.)\frac{V_0()}{Z_5}$

c$.)V_B$

d$.)-V_s()$

c$.)$ None of the above.

Answer
