Question: 3. Using JK Flip Flops, design the synchronous system having the following state diagram: 1/10 011 000 0/11 0/00 0/11 1/10 1/00 110 010 1/10

3. Using JK Flip Flops, design the synchronous system having the

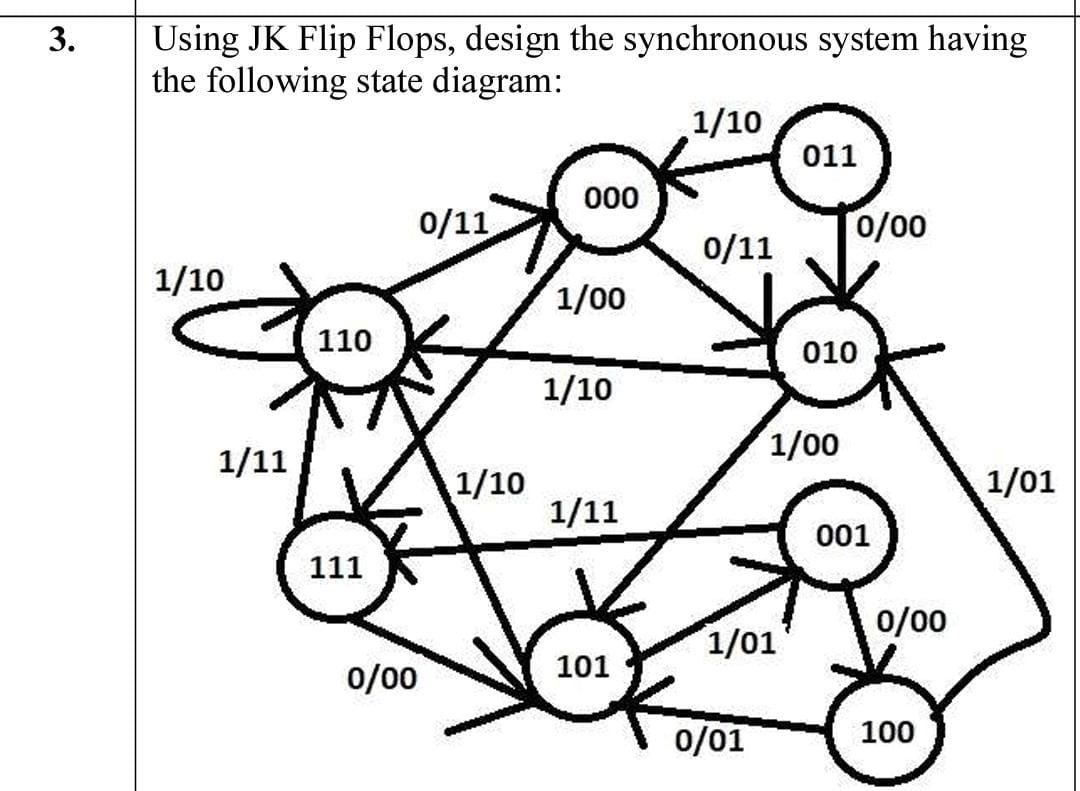

3. Using JK Flip Flops, design the synchronous system having the following state diagram: 1/10 011 000 0/11 0/00 0/11 1/10 1/00 110 010 1/10 1/11 1/00 1/10 1/01 1/11 001 111 0/00 1/01 0/00 101 0/01 100

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
