Question: . 3. Water is flowing through a Venturi meter whose diameter is 6 cm at the entrance and 3 cm at the throat. The pressure

. 3. Water is flowing through a Venturi meter whose diameter

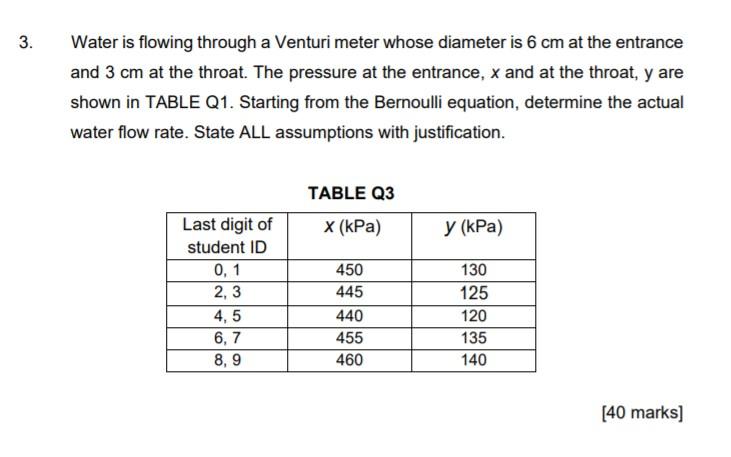

. 3. Water is flowing through a Venturi meter whose diameter is 6 cm at the entrance and 3 cm at the throat. The pressure at the entrance, x and at the throat, y are shown in TABLE Q1. Starting from the Bernoulli equation, determine the actual water flow rate. State ALL assumptions with justification. TABLE Q3 X (kPa) y (kPa) Last digit of student ID 0,1 2, 3 4,5 6,7 8,9 450 445 440 455 460 130 125 120 135 140 [40 marks] . 3. Water is flowing through a Venturi meter whose diameter is 6 cm at the entrance and 3 cm at the throat. The pressure at the entrance, x and at the throat, y are shown in TABLE Q1. Starting from the Bernoulli equation, determine the actual water flow rate. State ALL assumptions with justification. TABLE Q3 X (kPa) y (kPa) Last digit of student ID 0,1 2, 3 4,5 6,7 8,9 450 445 440 455 460 130 125 120 135 140 [40 marks]

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related Chemical Engineering Questions!

Last digit is 6 3. Water is flowing through a Venturi meter whose diameter is 6 cm at the entrance and 3 cm at the throat. The pressure at the entrance, x and at the throat, y are shown in TABLE Q1....

For example, the last digit of student ID is 8 or 9 3. Water is flowing through a Venturi meter whose diameter is 6 cm at the entrance and 3 cm at the throat. The pressure at the entrance, x and at...

Water is flowing through a Venturi meter whose diameter is 7 cm at the entrance part and 4 cm at the throat. The pressure is measured to be 380 kPa at the entrance and 150 kPa at the throat....

[ 4 marks ] Air is flowing through a venturi meter whose diameter is 6 . 6 cm at the entrance part ( location 1 ) and 4 . 6 cm at the throat ( location 2 ) . The gage pressure is measured to be 8 4...

Water flows through a venturi meter whose diameter is 7 cm at the entrance part and 4 cm at the throat. The pressure is 380 kPa at the entrance and 150 kPa at the throat. Neglecting frictional...

Air is flowing through a venturi meter whose diameter is $6.6 \mathrm{~cm}$ at the entrance part (location 1) and $4.6 \mathrm{~cm}$ at the throat (location 2). The gage pressure is measured to...

Water flows through a venturi meter whose diameter is 7cm at the entrance part and 4cm at the throat. The pressure is 380kPa at the entrance and 150kPa at the throat. Neglecting frictional effects...

Question 2 Air is flowing through a venturi meter whose diameter is 2 . 6 in at the entrance part ( location 1 ) and 1 . 8 in at the throat ( location 2 ) in Figure 2 . The gage pressure is measured...

Fluid is flowing through a Venturi meter whose diameter is 31 mm at the entrance part and 19 mm at the throat. The pressure is measured to be 735 kPa at the entrance and 550 kPa at the throat....

Air is flowing through a venturi meter whose diameter is 2.6 in at the entrance part (location 1) and 1.8 in at the throat (location 2). The gage pressure is measured to be 12.2 psia at the entrance...
