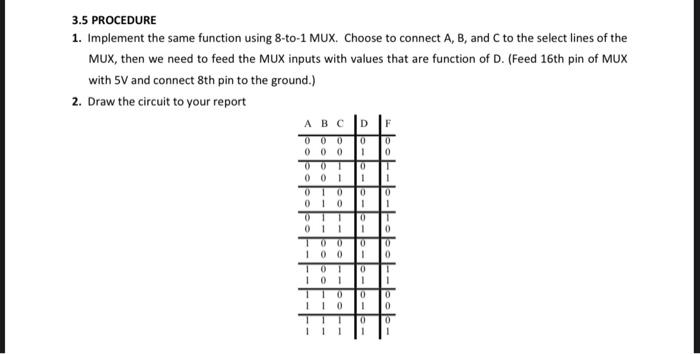

Question: 3.5 PROCEDURE 1. Implement the same function using 8-to-1 MUX. Choose to connect A,B, and C to the select lines of the MUX, then we

3.5 PROCEDURE 1. Implement the same function using 8-to-1 MUX. Choose to connect A,B, and C to the select lines of the MUX, then we need to feed the MUX inputs with values that are function of D. (Feed 16 th pin of MUX with 5V and connect 8 th pin to the ground.) 2. Draw the circuit to your report 3.5 PROCEDURE 1. Implement the same function using 8-to-1 MUX. Choose to connect A,B, and C to the select lines of the MUX, then we need to feed the MUX inputs with values that are function of D. (Feed 16 th pin of MUX with 5V and connect 8 th pin to the ground.) 2. Draw the circuit to your report

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related Databases Questions!

1. What is multiplexer? Explain. 2. Design a 38 decoder. 3.5 PROCEDURE 1. Implement the same function using 8-to-1 MUX. Choose to connect A, B, and C to the select lines of the MUX, then we need to...

ECE 275: HW#5 (due Tuesday October 30) Question 1 is worth 4 points and the rest are worth 2 points each, for a total of 16 points. Show your work, and check your answers ) Design a minimal...

1. Implement the following functions using 6input LUTs and an F7 Mux. a. An 81 Mux. Take [[7:0] as input signals, S[2:0] as select lines and Y as output signal of the MUX. b. F(A,B,C,D,E,F,C),A is...

Medium-Scale Integrated Circuits Using a 74LS151 (8-to-1 multiplexer) to Implement a Function of Four Variables Group row 0 with row 1; 2 with 3,, and 14 with 15. Connect the three most significant...

Question 1 (15 points): Choose the correct answer: 1- The function can be minimized to: a) b) c) d) 2. The function can be written as: a)! b) 0 3- The POS Boolean expressions that describes the truth...

PLEASE ANSWER THE FOLLOWING QUESTIONS FASTER Al. Connect the circuit shown in Fig. 9.1. Apply the inputs A, XO and X1 as in Table 1 with data switches. Monitor the output Y with the probe and record...

please answer the whole following questions faster!!!!!!!!!! Al. Connect the circuit shown in Fig. 9.1. Apply the inputs A, XO and X1 as in Table 1 with data switches. Monitor the output Y with the...

A2. Connect the circuit shown in the Fig. 9.2. This circuit uses a TTL type 74151 chip (8-to-1 MUX). Connect 12 binary switches to 8 data input lines (0-7), Not Enable Line (for activating device)...

PLEASE ANSWER THE WHOLE FOLLOWING QUESTIONS FASTER ONE BY ONE !!!!!!!!!!! A2. Connect the circuit shown in the Fig. 9.2. This circuit uses a TTL type 74151 chip (8-to-1 MUX). Connect 12 binary...

A2. Connect the circuit shown in the Fig. 9.2. This circuit uses a TTL type 74151 chip (8-to-1 MUX). Connect 12 binary switches to 8 data input lines (0-7), Not Enable Line (for activating device)...
