Question: 4 0 1 point The rectangular plate is deformed into the shape shown by the dashed lines. For a = 2 7 9 and b

4
01 point

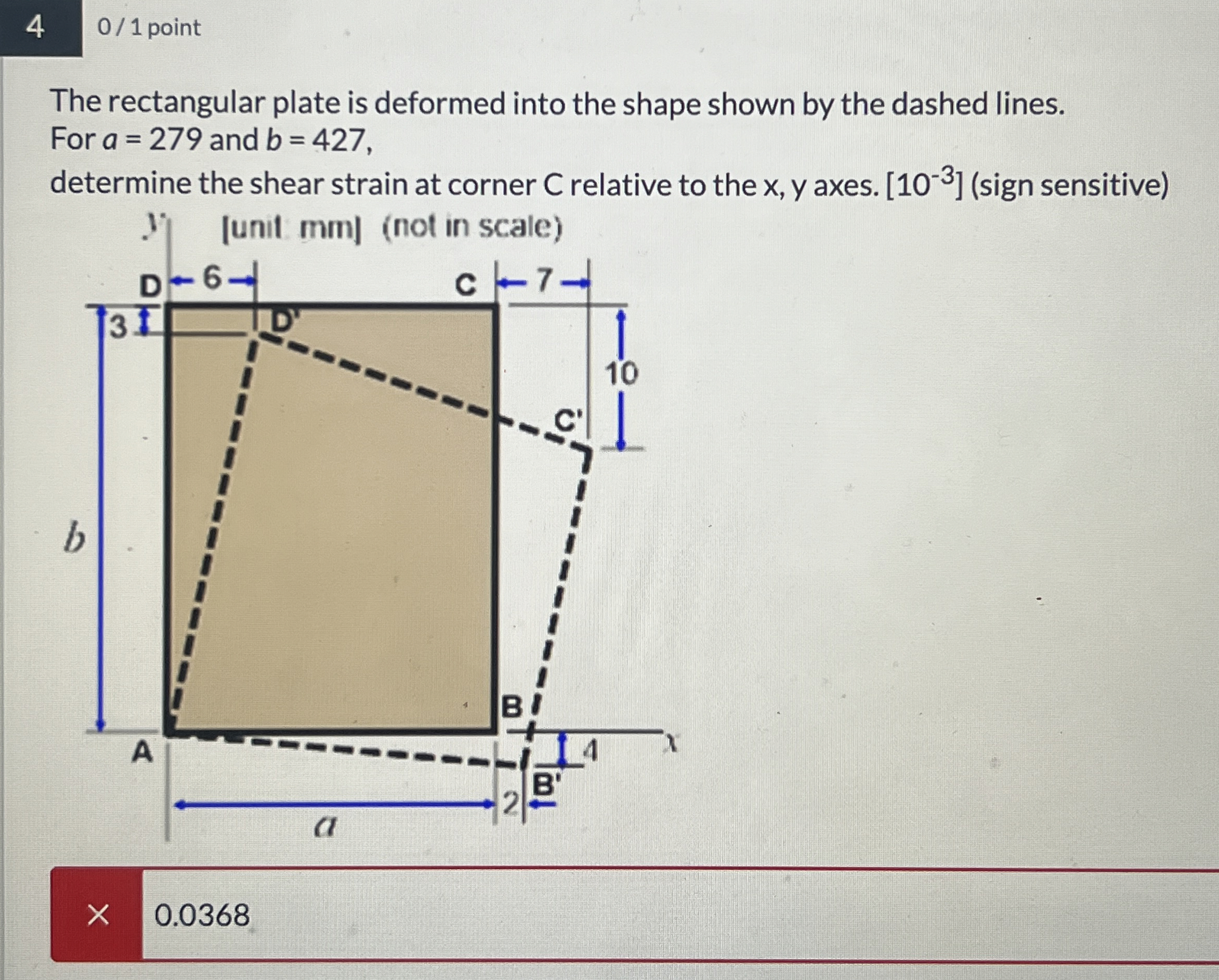

The rectangular plate is deformed into the shape shown by the dashed lines. For a=279 and b=427, determine the shear strain at corner C relative to the x,y axes. 10-3(sign sensitive)
0.0368
4 0 1 point The rectangular plate is deformed

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Mechanical Engineering Questions!

Q:

2 0/1 point The rectangular plate is deformed into the shape shown by the dashed lines. For a 285 and b = 419, determine the normal strain along the line of AD. [103] (sign sensitive) [unit: mm] (not...

Q:

The rectangular plate is deformed into the shape shown by the dashed lines. For a 272 and b = 426, determine the shear strain at corner C relative to the x, y axes. [103] (sign sensitive) y (unit mm]...

Q:

awnser this question ASAP!!!!!!!!!! The rectangular plate is deformed into the shape shown by the dashed lines. Suppose that a 300 mm and b 420 mm Egure 10 Part A Determine the average normal strain...

Q:

Item 1 1 of 4 The rectangular plate is deformed into the shape shown by the dashed lines. Suppose that a = 3 0 0 m m and b = 4 5 0 m m . ( Figure 1 ) Part A Determine the average normal strain along...

Q:

The rectangular plate is deformed into the shape shown by the dashed lines. Determine the average normal strain along diagonal BD, and the average shear strain at corner B relative to the x, y axes....

Q:

The rectangular plate is deformed into the shape shown by the dashed lines. Suppose that a = 270 mm and b = 360 mm Part A: Determine the average normal strain along diagonal BD. Part B:Determine the...

Q:

The rectangular plate is deformed into the shape shown by the dashed lines. Determine the average normal strain along diagonal AC, and the average shear strain at corner A relative to the x, y axes....

Q:

The rectangular plate is deformed into the shape shown by the dashed lines. Suppose that a = 3 0 0 mm and b = 4 0 0 mm . ( Figure 1 ) Determine the average normal strain along diagonal BD . Express...

Q:

Part A The square plate is deformed into the shape shown by the dashed lines. ( Figure 1 ) If D C has a normal strain x = 0 . 0 0 4 , D A has a normal strain y = 0 . 0 0 3 and at D , x y = 0 . 0 2...

Q:

2. Consider the 100mm X 150mm plate ABCO shown in the sketch on the following page. The plate is deformed into the configuration shown by the dashed lines. a) Assume that the resulting displacement...
