Question: The rectangular plate is deformed into the shape shown by the dashed lines. Suppose that a = 270 mm and b = 360 mm Part

The rectangular plate is deformed into the shape shown by the dashed lines. Suppose that a = 270 mm and b = 360 mm

Part A: Determine the average normal strain along diagonal BD.

Part B:Determine the average shear strain at corner B relative to the x, y axes.

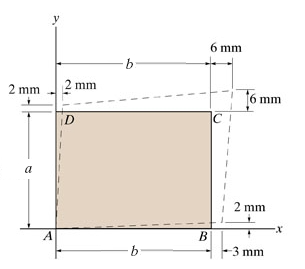

The rectangular plate is deformed into the shape shown by the dashed

CoursHeroTranscribedText

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
