Question: ( 4 0 % ) For the 3 - span bridge shown in the figure, construct the influence lines for the vertical reaction at A

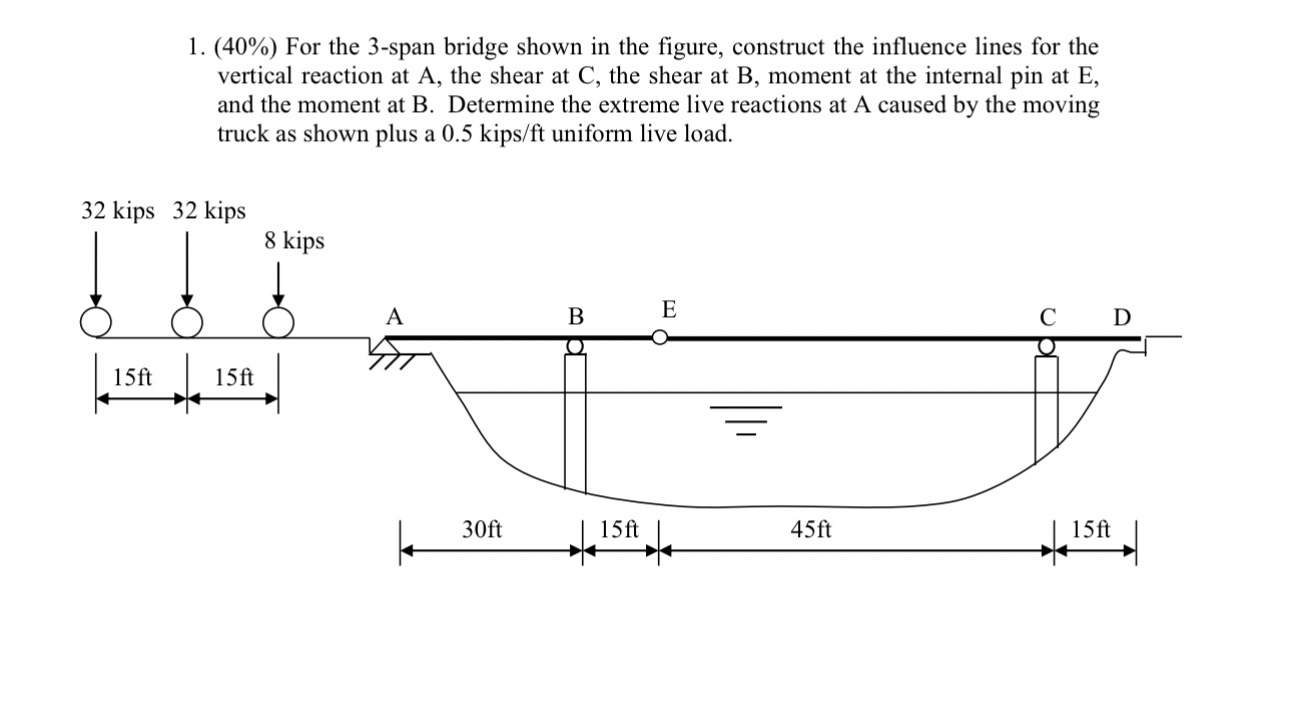

(40%) For the 3-span bridge shown in the figure, construct the influence lines for the vertical reaction at A , the shear at C , the shear at B , moment at the internal pin at E , and the moment at B. Determine the extreme live reactions at A caused by the moving truck as shown plus a 0.5kipsft uniform live load.
( 4 0 % ) For the 3 - span bridge shown in the

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
