Question: 4 - 1 1 7 . Replace the force system acting on the frame by an equivalent resultant force and couple moment acting at point

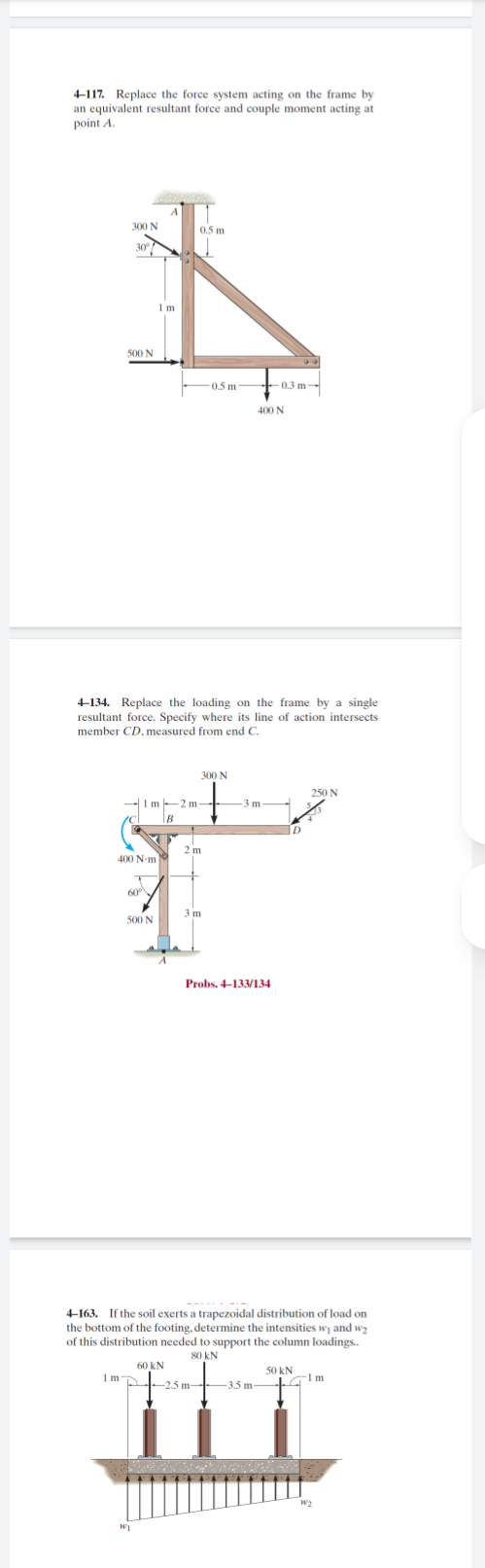

4-117. Replace the force system acting on the frame by an equivalent resultant force and couple moment acting at point A.
4-134. Replace the loading on the frame by a single resultant force. Specify where its line of action intersects member CD, measured from end C.
4-163. If the soil exerts a trapezoidal distribution of load on the bottom of the footing, determine the intensities w1 and w2 of this distribution needed to support the column loadings.
4 - 1 1 7 . Replace the force system acting on

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Mechanical Engineering Questions!

Q:

Replace the force system acting on the frame by an equivalent resultant force and couple moment acting at point A. Given: F1 = 35 lb a = 2 ft F2 = 20 lb b = 4 ft F3 = 25 lb c = 3 ft θ = 30 deg...

Q:

Replace the force system acting on the frame by an equivalent resultant force and couple moment acting at point A. A 300 N 0.5 m 30/ 1 m 500 N 0.5 m 0.3 m - - 400 N

Q:

Replace the force system acting on the post by a resultant force and a couple moment at point A. 500 N B 0.5 m 1 m 30 1 m 1 m A 0.2 m FI=250 N F300 N The magnitude of the resultant force: |FR| = N...

Q:

Replace the force system acting on the frame shown in (Figure 1) by an equivalent resultant force. Part A Determine the direction of the equivalent resultant force. Express your answer in degrees to...

Q:

Replace the force system acting on the frame by an equivalent resultant force and specify where the resultant's line of action intersects member AB, measured from point A. Given: F1 = 35 lb a = 2 ft...

Q:

Replace the force system acting on the frame by an equivalent resultant force and specify where the resultant's line of action intersects member BC, measured from point B. Given: F1 = 35 lb F2 = 20...

Q:

Replace the force system acting on the frame by an equivalent resultant force and specify where the resultant?s line of action intersects member AB, measured from point A. 35 Ib 20 Ib 4 ft 2ft 3 ft...

Q:

Replace the force and couple-moment system by an equivalent resultant force and couple moment at point O. Express the results in Cartesian vector form. Units Used: kN = 103 N Given: F = (8 6 8) kN M...

Q:

Replace the force and couple-moment system by an equivalent resultant force and couple moment a t point Q. Express the results in Cartesian vector form. Units Used: kN = 103 N Given: F = (8 6 8) kN M...

Q:

The slab is to be hoisted using the three slings shown. Replace the system of forces acting on slings by an equivalent force and couple moment at point O. The force F1 isvertical. F= 4 kN F= S KN F =...
