Replace the force system acting on the post by a resultant force and a couple moment...

Transcribed Image Text:

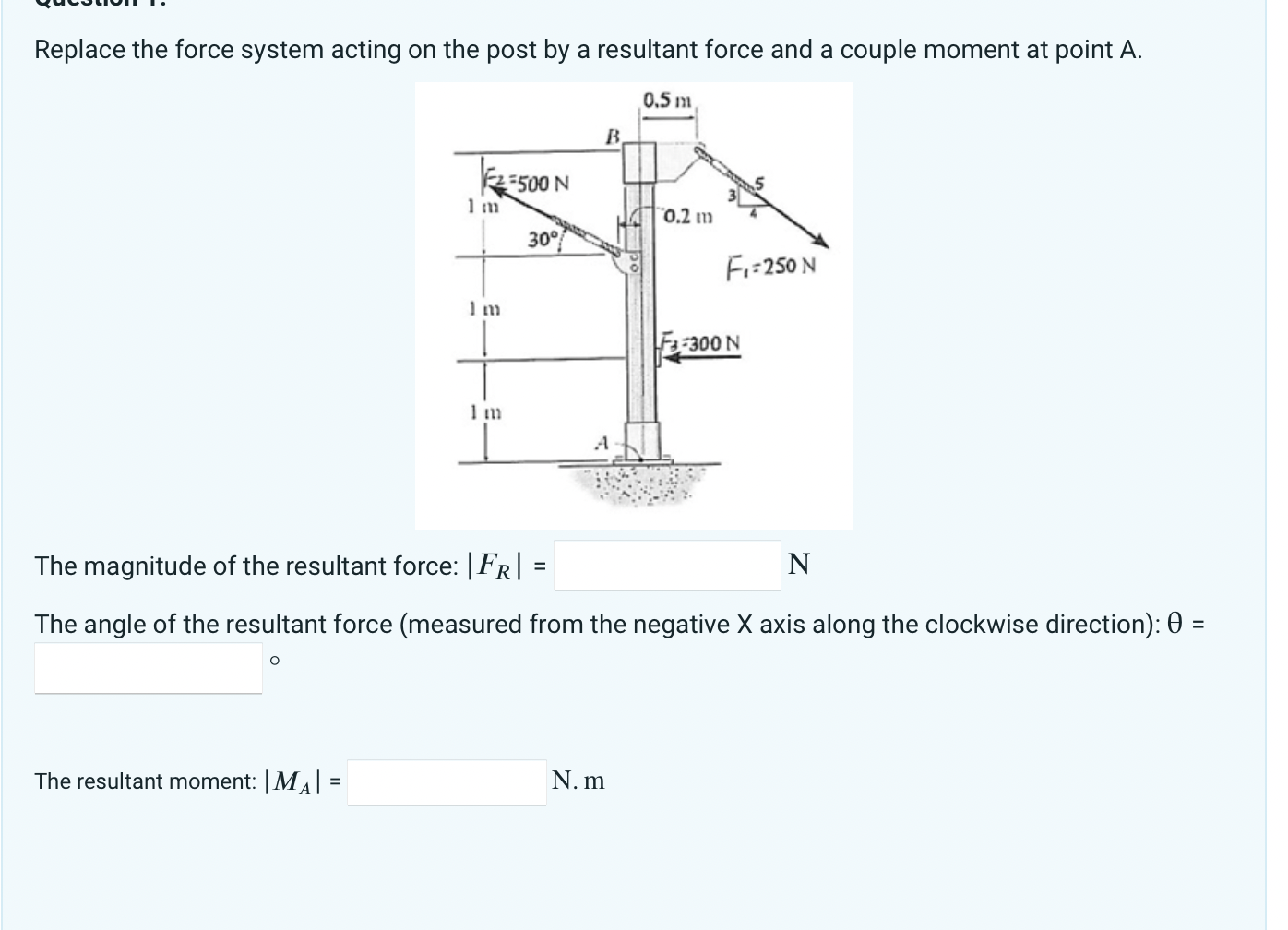

Replace the force system acting on the post by a resultant force and a couple moment at point A. 500 N B 0.5 m 1 m 30 1 m 1 m A 0.2 m FI=250 N F300 N The magnitude of the resultant force: |FR| = N The angle of the resultant force (measured from the negative X axis along the clockwise direction): 0 = The resultant moment: |M|= N. m Replace the force system acting on the post by a resultant force and a couple moment at point A. 500 N B 0.5 m 1 m 30 1 m 1 m A 0.2 m FI=250 N F300 N The magnitude of the resultant force: |FR| = N The angle of the resultant force (measured from the negative X axis along the clockwise direction): 0 = The resultant moment: |M|= N. m
