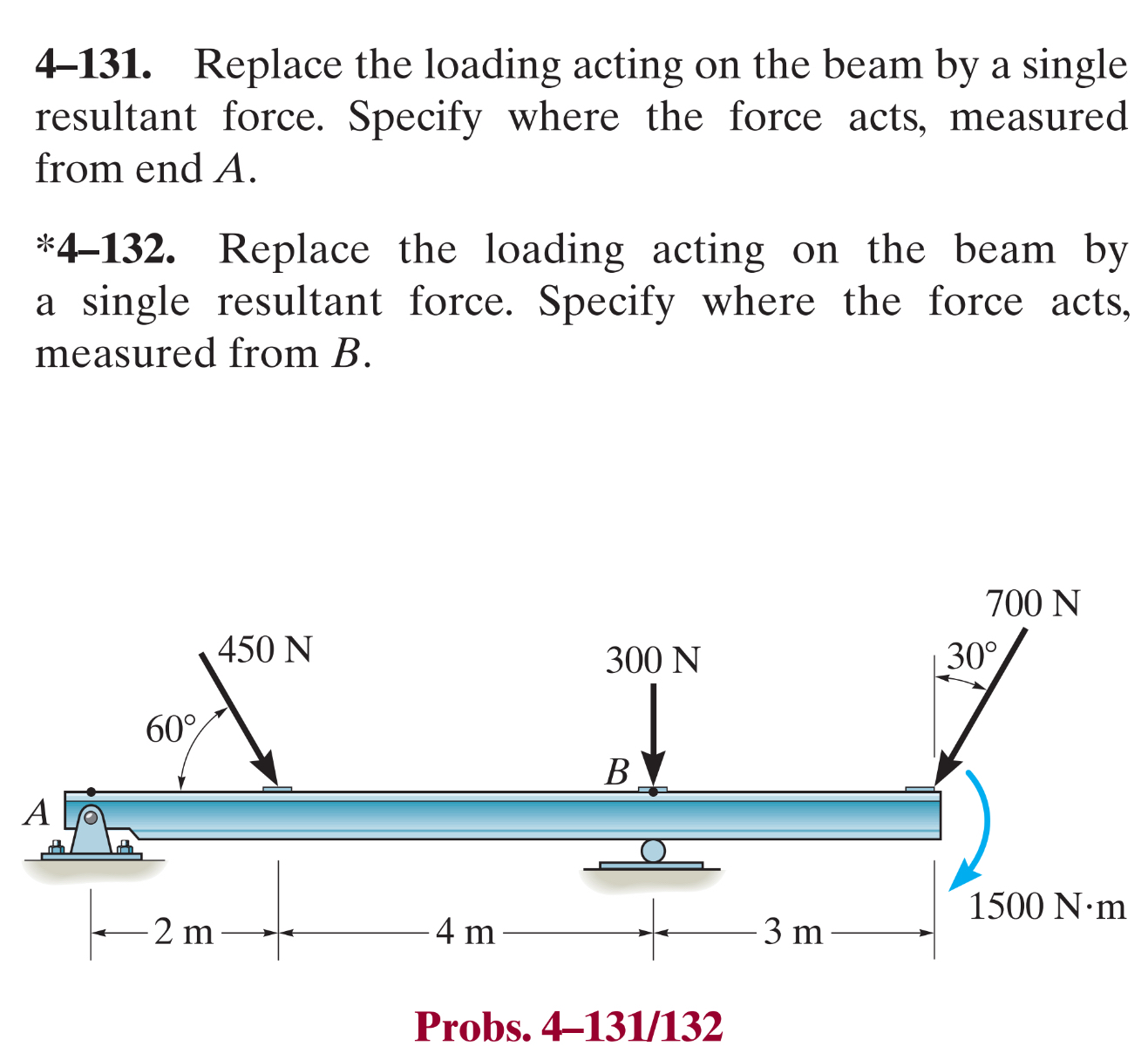

Question: 4 - 1 3 1 . Replace the loading acting on the beam by a single resultant force. Specify where the force acts, measured from

4-131. Replace the loading acting on the beam by a single
resultant force. Specify where the force acts, measured
from end A.
*4-132. Replace the loading acting on the beam by
a single resultant force. Specify where the force acts,
measured from B.
4 - 1 3 1 . Replace the loading acting on the

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Mechanical Engineering Questions!

Q:

Replace the loading acting on the beam by a single resultant force. Specify where the force acts, measured from end A. 60% m 450 N -4 m. 300 N B -3 m- 700 N 30 1500 Nm

Q:

Replace the loading acting on the beam by a single resultant force. Specify where the force acts, measured from B. 60 450 N |--2m--- -4 m- 300 N B -3m- 700 N 30 1500 Nm

Q:

Replace the loading acting on the beam with a single resultant force. Take F 1 = 420 N , F 2 = 300 N , F 3 = 740 N . (Figure 1) Part A Determine the magnitude of the resultant force. Part B Determine...

Q:

Part A Replace the loading acting on the beam by a single resultant force. (Figure 1) Determine the magnitude of the resultant force, if F1 = 450 N, F2 = 330 N, and F3 = 710 N Express your answer to...

Q:

Worksheet, 4.7-4.8 *4-112. The belt passing over the pulley is subjected to two forces F, and F2. each having a magnitude of 40 N. F, acts in the -k direction. Replace these forces by an equivalent...

Q:

Replace the three forces acting on the shaft by a single resultant force. Specify where the force acts, measured from end B. Given: F1 = 500 lb F2 = 200 lb F3 = 260 lb a = 5 ft e = 3 b = 3 ft f = 4 c...

Q:

Replace the three forces acting on the shaft by a single resultant force. Specify where the force acts, measured from end B. Given: F1 = 500 lb F2 = 200 lb F3 = 260 lb a = 5 ft e = 3 b = 3 ft f = 4 c...

Q:

Problem 4 . 1 1 0 Replace the force system acting on the beam by an equivalent resultant force, and specify its point of application on the beam measured from point O ( Figure 1 ) . Take F 1 = 5 l b...

Q:

Replace the loading acting on the beam shown in (Figure 1) by a single resultant force. Take F1 = 450 N , F2 = 350 N , and F3 = 700 N . Figure1 of 1 A beam of length 9 meters extends to the right...

Q:

Replace the loading on the beam by an equivalent resultant force and specify its location, measured from point A. + \FR = F ; (+MRA = ; Fn = 3 + 1.5 + 1.5 = 6 kN | 6(d) 3 (1) + 1.5 (1.5) + 1.5 (4) d...
