Question: Part A Replace the loading acting on the beam by a single resultant force. (Figure 1) Determine the magnitude of the resultant force, if F1

Part A Replace the loading acting on the beam by a

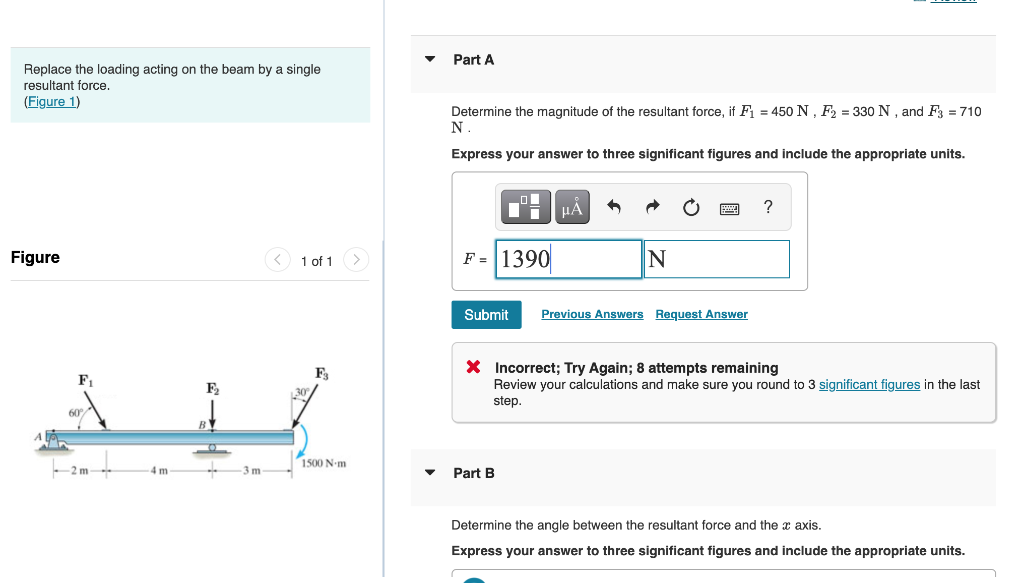

Part A Replace the loading acting on the beam by a single resultant force. (Figure 1) Determine the magnitude of the resultant force, if F1 = 450 N, F2 = 330 N, and F3 = 710 N Express your answer to three significant figures and include the appropriate units. ? Figure 1 of 1 F = 1390 N Submit Previous Answers Request Answer F F F X Incorrect; Try Again; 8 attempts remaining Review your calculations and make sure you round to 3 significant figures in the last step. 60 1500 Nom 2 m 4 m -3 m v Part B Determine the angle between the resultant force and the x axis. Express your answer to three significant figures and include the appropriate units

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related Chemical Engineering Questions!

Replace the loading acting on the beam by a single resultant force. ( Figure 1 ) Figure 1 of 1 Previous Answers F = 4 6 1 Determine the magnitude of the resultant force, if F 1 = 4 7 0 N , F 2 = 3 3...

Replace the loading acting on the beam by a single resultant force. ( Figure 1 ) Figure 1 of 1 Part A Determine the magnitude of the resultant force, if F 1 = 4 7 0 N , F 2 = 3 3 0 N , and F 3 = 7 0...

User Settings Replace the loading acting on the beam by a single resultant force. ( Elgure 1 ) Part A Determine the magnitude of the resultant force, if F 1 = 4 5 0 N , F 2 = 3 1 0 N , and F 3 = 7 5...

SHW - 4 B: Ch . 4 - Vectors ( Moments ) in 2 D and 3 D Problem 4 . 1 1 7 Replace the loading acting on the beam by a single resultant force. Take F 1 = 4 3 0 N , F 2 = 2 8 0 N , F 3 = 6 9 0 N . (...

Replace the loading acting on the beam by a single resultant force. Take F 1 = 4 8 0 N , F 2 = 3 1 0 N , F 3 = 7 4 0 N . - Determine the magnitude of the resultant force. - Determine the angle...

Part 2 : Free Response Problem. Write your solution clearly in the bluebook. Problem 7 . For the beam shown below: a ) Replace the loading acting on the beam by an equivalent resultant force (...

Problem 7 . For the beam shown below: a ) Replace the loading acting on the beam by an equivalent resultant force ( determine its magnitude and direction ) and a couple moment acting at A . b )...

Replace the loading acting on the beam by a single resultant force. ( Figure 1 ) Figure 1 of 1 Part A Determine the magnitude of theresultant force, if F 1 = 4 7 0 N , F 2 = 3 3 0 N , and F 3 = 7 3 0...

Replace the loading acting on the beam shown in (Figure 1) by a single resultant force. Take F1 = 450 N , F2 = 350 N , and F3 = 700 N . Figure1 of 1 A beam of length 9 meters extends to the right...

Part A Replace the loading acting on the beam ( Figure 1 ) by a single resultant force. Suppose that \ ( F _ { 1 } = 4 5 0 \ mathrm { ~N } \ ) , \ ( F _ { 2 } = 3 0 0 \ mathrm { ~N } \ ) , and \ ( F...
